Alloy Steel ASTM A234 Pipe Fittings – Manufacturer, Supplier & Exporter in Mumbai, India

What are Alloy Steel ASTM A234 Pipe Fittings?

ASTM A234 Alloy Steel Pipe Fittings are wrought fittings made from alloy steel materials designed for moderate and high-temperature services. These fittings are commonly used in pressure piping systems and pressure vessels.

They are available in various grades such as:

• WP1, WP5, WP9, WP11, WP22, WP91

These grades contain alloying elements like chromium and molybdenum, which enhance strength, heat resistance, and corrosion resistance.

Alloy steel A234 fittings are ideal for applications requiring superior performance under high stress, pressure, and temperature conditions.

Key Features of Alloy Steel A234 Pipe Fittings

• Excellent high-temperature strength
• Superior resistance to heat and pressure
• Good corrosion and oxidation resistance
• High durability and long service life
• Excellent weldability and fabrication properties
• Resistance to creep and thermal fatigue

Chemical Composition (%)

Composition varies depending on grade. Example:

ASTM A234 WP11 (Typical)

• Carbon (C): 0.05 – 0.15%
• Manganese (Mn): 0.30 – 0.60%
• Silicon (Si): 0.50 – 1.00%
• Chromium (Cr): 1.00 – 1.50%
• Molybdenum (Mo): 0.44 – 0.65%
• Sulfur (S): ≤ 0.040%
• Phosphorus (P): ≤ 0.040%

Mechanical Properties

ASTM A234 WP11

• Tensile Strength: 415 – 585 MPa
• Yield Strength: ≥ 205 MPa
• Elongation: ≥ 20%
• Hardness: ~197 HB max
• Density: ~7.85 g/cm³

(Properties may vary depending on grade such as WP22, WP91, etc.)

Physical Properties

• Melting Range: ~1400 – 1500°C
• Modulus of Elasticity: ~200 GPa
• Thermal Conductivity: ~40 W/m·K
• Thermal Expansion: ~12 µm/m°C

Corrosion & Heat Resistance

Alloy steel A234 pipe fittings offer:

• Good resistance to oxidation at high temperatures
• Improved corrosion resistance compared to carbon steel
• Excellent performance in high-pressure steam and heat environments

They are particularly suitable for applications involving elevated temperatures and mechanical stress.

Heat Treatment

Alloy steel A234 fittings are heat treated to enhance properties:

• Normalizing
• Annealing
• Quenching and Tempering

These processes improve strength, toughness, and resistance to thermal stress.

Weldability

These fittings offer good weldability with proper procedures:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Welding Recommendations

• Preheating may be required
• Use compatible alloy filler materials
• Control heat input
• Post-weld heat treatment (PWHT) recommended for certain grades

Machinability

Alloy steel has moderate machinability:

• Use carbide tools
• Maintain controlled cutting speeds
• Apply sufficient coolant
• Avoid overheating

Standards & Specifications

• ASTM A234
• ASME SA234
• ANSI B16.9 / B16.28
• MSS SP-75

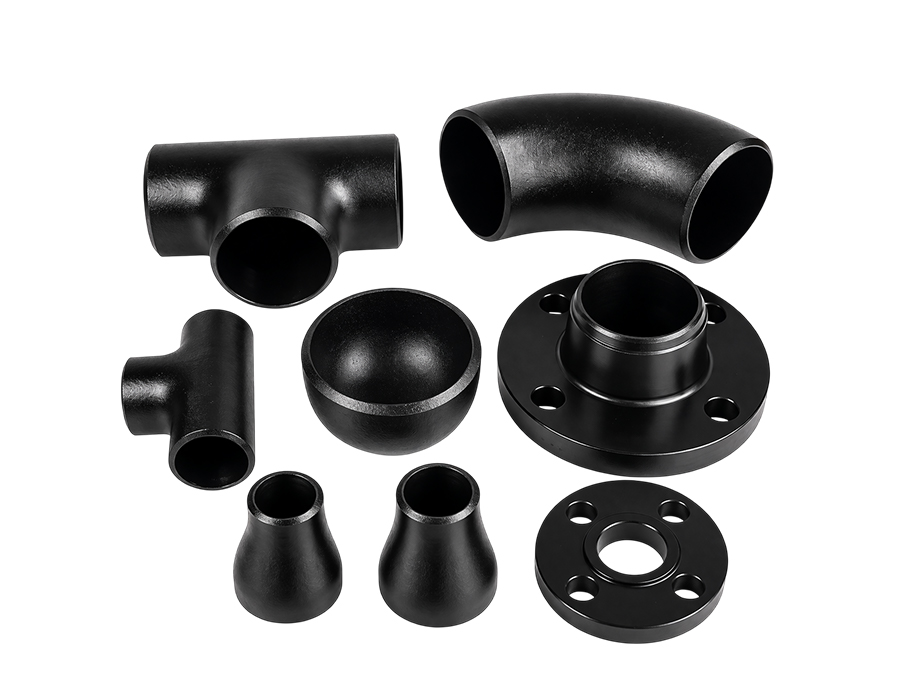

Available Types

• Elbows (45°, 90°, 180°)
• Tees (Equal & Reducing)
• Reducers (Concentric & Eccentric)
• Stub Ends
• Pipe Caps
• Cross Fittings

Available Sizes & Finishes

• Size Range: ½” to 48”
• Thickness: SCH 10 to SCH XXS

Surface Finish:

• Black
• Pickled & oiled
• Painted or coated

Custom sizes available as per requirements.

Applications

Power Generation

• Boiler systems
• High-temperature pipelines

Oil & Gas Industry

• Refineries
• Pressure piping systems

Petrochemical Industry

• Process plants
• Chemical handling systems

Thermal Plants

• Steam pipelines
• Heat exchangers

Industrial Manufacturing

• Heavy-duty piping systems

Quality Testing & Inspection

At Virami Steel Hub, all alloy steel pipe fittings undergo strict quality checks:

• Chemical composition analysis
• Mechanical testing
• Hydrostatic testing
• Dimensional inspection
• PMI testing

Mill Test Certificates (MTC) and third-party inspections are available.

Packaging & Delivery

• Export-grade packaging
• Wooden boxes and pallets
• Proper labeling and traceability
• Safe and timely delivery worldwide

Why Choose Virami Steel Hub?

• Trusted alloy steel fittings manufacturer in Mumbai
• Large stock availability
• Competitive pricing
• Custom manufacturing options
• Compliance with international standards
• Strong export network
• Reliable delivery and customer support

Conclusion

Alloy Steel ASTM A234 Pipe Fittings are high-performance components designed for demanding industrial applications involving high pressure and temperature. With excellent strength, heat resistance, and durability, they are widely used in power plants, refineries, petrochemical industries, and heavy engineering sectors.

Virami Steel Hub supplies premium-quality alloy steel A234 pipe fittings manufactured to global standards, ensuring superior performance, reliability, and long service life.
