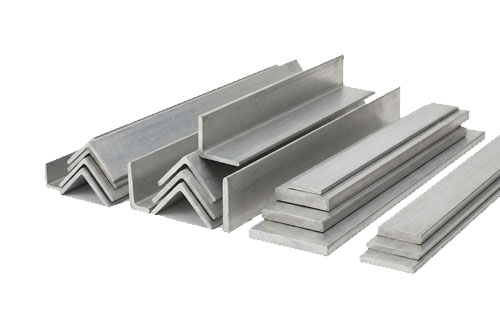

Alluminium Alloy 5083 Angles & Flats

What are Alluminium Alloy 5083 Angles & Flats?

Alluminium Alloy 5083 is a non-heat-treatable Alluminium alloy primarily alloyed with magnesium. It is widely known for its exceptional corrosion resistance, especially in marine and saltwater environments, along with good strength and weldability.

Key Functions:

• Provide high structural strength
• Resist corrosion in marine environments
• Ensure durability under harsh conditions
• Enable efficient fabrication and welding

Chemical Composition of Alluminium Alloy 5083

Typical Composition:

• Alluminium (Al): Balance
• Magnesium (Mg): 4.0% – 4.9%
• Manganese (Mn): 0.4% – 1.0%
• Chromium (Cr): 0.05% – 0.25%
• Iron (Fe): ≤ 0.4%
• Silicon (Si): ≤ 0.4%

This composition provides excellent corrosion resistance and strength.

Key Features of Alluminium Alloy 5083 Angles & Flats

• Excellent corrosion resistance (especially marine)
• High strength among non-heat-treatable alloys
• Excellent weldability
• Good fatigue strength
• Suitable for low-temperature applications
• Long service life in harsh environments

Mechanical Properties

• Tensile Strength: ~275–350 MPa
• Yield Strength: ~125–215 MPa
• Elongation: ~10–20%
• Hardness: Moderate

Physical Properties

• Density: ~2.66 g/cm³
• Melting Range: ~570–640°C
• Modulus of Elasticity: ~70 GPa
• Thermal Conductivity: ~120 W/m·K
• Thermal Expansion: Moderate

Corrosion Resistance

Alluminium Alloy 5083 provides outstanding resistance to:

• Seawater and marine environments
• Saltwater and chloride exposure
• Industrial and chemical environments
• Stress corrosion cracking

It is one of the best Alluminium alloys for marine applications.

Heat Treatment

Alluminium Alloy 5083 is not heat-treatable.

Typical Process:

• Strengthened through cold working (strain hardening)

Weldability

Excellent weldability with standard methods.

Welding Methods:

• TIG (GTAW)
• MIG (GMAW)

Best Practices:

• Use compatible filler materials
• Maintain clean surfaces
• Control heat input

Machinability

• Moderate machinability
• Requires proper tooling and lubrication
• May produce built-up edge during machining

Standards & Specifications

• ASTM B221
• ASTM B211
• EN AW-5083
• UNS A95083

Available Types of Angles & Flats

We offer:

• Equal Angles
• Unequal Angles
• Flat Bars
• Extruded Sections
• Custom Fabricated Profiles

Sizes & Specifications

• Thickness: 3 mm to 100 mm
• Width: Up to 200 mm (flats)
• Length: Up to 6000 mm or as required

Surface Finish Options:

• Mill Finish
• Anodized Finish
• Polished Finish

Applications of Alluminium Alloy 5083 Angles & Flats

• Marine Industry : Shipbuilding and offshore structures
• Transportation : Truck bodies and rail components
• Construction : Structural frameworks
• Pressure Vessels : Storage tanks
• Industrial Applications : Heavy-duty structures

Quality Testing & Inspection

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface quality inspection
• Positive Material Identification (PMI)

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-grade wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Trusted Alluminium Alloy 5083 supplier in Mumbai
• Ready stock and fast delivery
• Competitive pricing
• Custom sizes available
• International quality standards
• Strong export network
• Dedicated customer support

Conclusion

Alluminium Alloy 5083 Angles & Flats are an excellent choice for applications requiring superior corrosion resistance, especially in marine environments. Their strength, weldability, and durability make them ideal for demanding industrial and structural applications.

Virami Steel Hub delivers premium-quality Alluminium alloy products that ensure performance, reliability, and long-term value.
