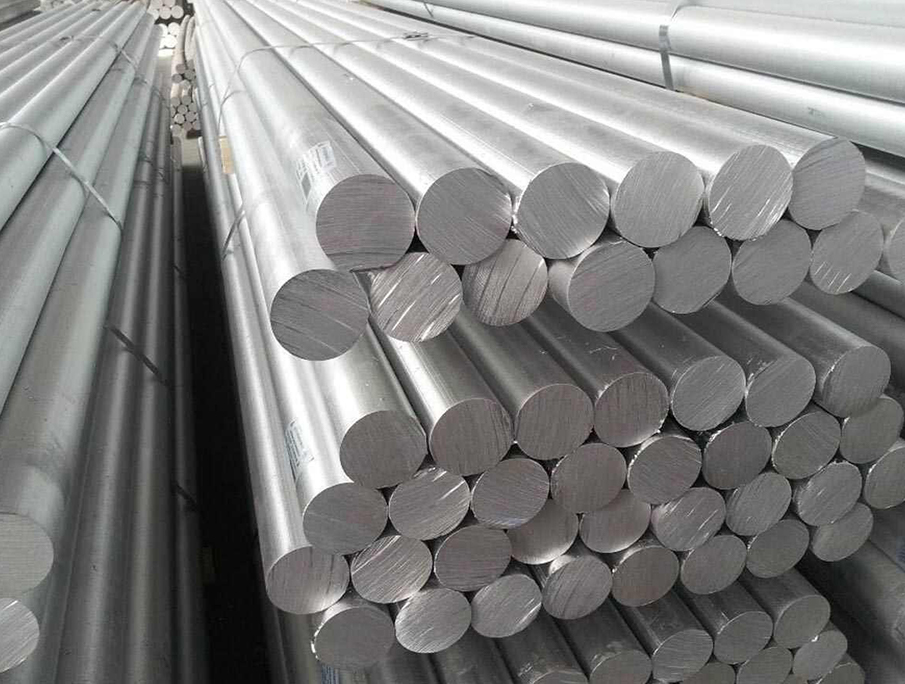

Aluminium Alloy 6082 Round Bars

What is Aluminium Alloy 6082 Round Bar?

Aluminium Alloy 6082 is a 6xxx series aluminium-magnesium-silicon alloy widely used in structural and engineering applications. Its combination of high strength, corrosion resistance, and machinability makes it one of the most versatile aluminium alloys for industrial use.

Key features of Aluminium Alloy 6082 round bars:

• Excellent corrosion resistance in atmospheric and marine environments
• High tensile and yield strength suitable for heavy-duty applications
• Heat-treatable for optimized hardness and mechanical performance
• Good fatigue and wear resistance
• Excellent machinability and weldability
• Lightweight yet strong for structural and industrial applications

6082 aluminium round bars are widely used in construction, transportation, aerospace, marine, and mechanical engineering applications.

Key Features of Aluminium Alloy 6082 Round Bars

• High strength-to-weight ratio for structural and mechanical applications
• Excellent corrosion resistance, particularly in marine and industrial environments
• Heat-treatable to T6 or T651 temper for enhanced mechanical properties
• Good machinability for turning, milling, and drilling
• Suitable for welding with standard aluminium fillers
• Lightweight and easy to fabricate for industrial and construction projects

These features make 6082 aluminium round bars ideal for structural frameworks, high-performance machinery, marine structures, and architectural applications.

Chemical Composition of Aluminium Alloy 6082 (%)

• Silicon (Si): 0.7 – 1.3%
• Magnesium (Mg): 0.6 – 1.2%
• Manganese (Mn): 0.4 – 1.0%
• Iron (Fe): ≤ 0.5%
• Copper (Cu): ≤ 0.1%
• Chromium (Cr): ≤ 0.25%
• Zinc (Zn): ≤ 0.2%
• Titanium (Ti): ≤ 0.1%
• Aluminium (Al): Balance

Role of Alloying Elements

• Silicon: Improves hardness, wear resistance, and corrosion resistance
• Magnesium: Enhances mechanical strength and corrosion resistance
• Manganese: Improves structural stability and fatigue resistance
• Chromium: Prevents stress corrosion cracking and improves toughness

The combination of these elements ensures high strength, excellent corrosion resistance, and structural reliability in 6082 aluminium round bars.

Mechanical Properties of Aluminium Alloy 6082 Round Bars

Aluminium Alloy 6082 exhibits outstanding mechanical performance, particularly in T6/T651 heat-treated condition:

• Tensile Strength: 310 – 340 MPa
• Yield Strength: 260 – 290 MPa
• Elongation: 8 – 12%
• Brinell Hardness: 95 – 105 HB

These properties make Aluminium 6082 round bars suitable for structural frameworks, aerospace and automotive components, and heavy-duty machinery.

Physical Properties of Aluminium Alloy 6082 Round Bars

• Density: 2.70 g/cm³
• Melting Range: 555 – 650°C
• Thermal Conductivity: 180 – 200 W/m·K
• Electrical Conductivity: 22 – 25% IACS
• Modulus of Elasticity: 70 GPa
• Coefficient of Thermal Expansion: 23 µm/m°C

The combination of lightweight, corrosion resistance, and mechanical strength makes 6082 aluminium round bars ideal for structural, marine, and mechanical applications.

Heat Treatment of Aluminium Alloy 6082 Round Bars

Aluminium Alloy 6082 is heat-treatable, and its mechanical properties can be enhanced through artificial aging:

Solution Heat Treatment (T6)

• Heat to 535 – 555°C
• Rapid water quenching
• Artificial aging at 175 – 185°C for several hours

T651 Temper

• Solution heat-treated, stress-relieved by stretching
• Ensures dimensional stability and improved mechanical properties

Proper heat treatment ensures Aluminium Alloy 6082 bars maintain high strength, fatigue resistance, and surface integrity.

Machinability of Aluminium Alloy 6082 Round Bars

6082 aluminium round bars are highly machinable, suitable for precision engineering:

• Compatible with turning, milling, drilling, and CNC machining
• Produces smooth finishes and precise tolerances
• Use of cutting fluids recommended to avoid overheating
• Threads, grooves, and slots can be machined efficiently

Corrosion Resistance of Aluminium Alloy 6082 Round Bars

• Excellent corrosion resistance in atmospheric, marine, and industrial environments
• Performs well in outdoor and coastal applications
• Resistant to oxidation and most chemical environments
• Can be anodized or coated to enhance surface protection

This makes 6082 aluminium round bars ideal for marine structures, chemical processing plants, and architectural applications.

Weldability of Aluminium Alloy 6082 Round Bars

Aluminium Alloy 6082 is weldable using standard aluminium welding techniques:

• TIG (GTAW), MIG (GMAW), and spot welding are suitable
• Filler metals: 5356 or 5183 recommended for corrosion-resistant welds
• Post-weld treatment may be applied to restore mechanical properties
• Ensures strong, corrosion-resistant joints

Available Sizes & Specifications

Aluminium Alloy 6082 Round Bars are supplied in:

Standards:

• ASTM B221
• ISO 6361 / 209-1
• EN 573 / 485

Size Range:

• Diameter: 6 mm – 300 mm
• Length: 3m, 6m, or customized cut lengths
• Tolerances: As per ASTM / ISO standards

Surface Finish:

• Hot Rolled / Bright
• Polished
• Centerless Ground

Applications of Aluminium Alloy 6082 Round Bars

Aluminium Alloy 6082 is widely used in structural, mechanical, marine, and architectural applications:

Structural & Construction

• Structural frameworks for buildings, bridges, and towers
• Lightweight construction beams, rods, and supports
• Architectural frameworks requiring corrosion resistance

Automotive & Transportation

• Vehicle frames and chassis components
• Axles, shafts, and mechanical components
• Lightweight structures for buses, trucks, and rail vehicles

Marine & Offshore

• Shipbuilding and marine structural components
• Offshore platforms and oil rigs
• Piping and pumps in seawater environments

Industrial Applications

• Machinery parts, shafts, rods, and gears
• Tooling, jigs, and fixtures for manufacturing
• Heavy-duty mechanical assemblies requiring corrosion resistance

Advantages of Aluminium Alloy 6082 Round Bars

• High strength-to-weight ratio for structural and mechanical applications
• Excellent corrosion resistance in marine and industrial environments
• Heat-treatable to T6/T651 for superior mechanical properties
• Good machinability for precision components
• Weldable with standard aluminium fillers
• Lightweight, durable, and reliable for long-term performance
• Suitable for structural, marine, automotive, and industrial engineering projects

Quality Testing & Inspection

All Aluminium Alloy 6082 round bars undergo:

• Chemical composition analysis
• Mechanical property testing
• Hardness testing
• Dimensional inspection
• Surface finish verification

Mill Test Certificates (MTC) are provided per ASTM and ISO standards. Third-party inspection is available upon request.

Why Choose Virami Steel Hub for Aluminium Alloy 6082 Round Bars?

• Trusted aluminium alloy manufacturer and supplier in Mumbai, India
• High-quality structural, marine, and industrial-grade aluminium alloys
• Competitive pricing and fast delivery
• Custom sizes, lengths, and temper options
• Certified quality assurance and MTC
• Expertise in structural, marine, automotive, and industrial applications

Conclusion

Aluminium Alloy 6082 Round Bars are high-strength, heat-treatable aluminium-magnesium-silicon alloys offering excellent corrosion resistance, superior mechanical properties, and machinability. Ideal for structural, marine, automotive, and industrial applications, Aluminium 6082 ensures durability, reliability, and long-term performance.

Virami Steel Hub supplies certified Aluminium Alloy 6082 Round Bars with customizable sizes and temper options, making it the preferred choice for critical engineering, structural, and industrial applications.
