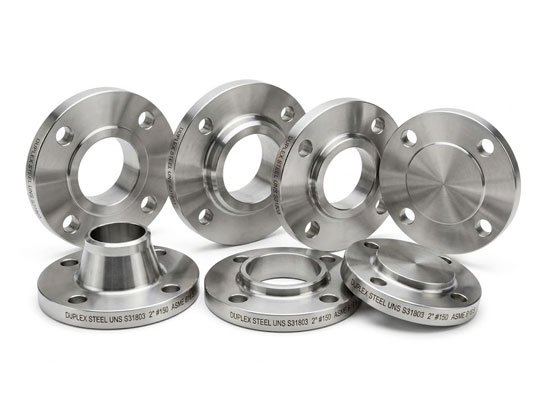

Duplex Steel UNS S31803 Flanges

What are Duplex Steel UNS S31803 Flanges?

Duplex Steel UNS S31803 flanges are piping components used to:

• Connect pipelines and equipment: Provide strong and leak-proof joints
• Handle high-pressure systems: Suitable for heavy-duty industrial applications
• Resist corrosive environments: Ideal for chloride-rich and chemical conditions
• Improve system reliability: Offer long-lasting and durable connections

These flanges are made from duplex stainless steel, which combines austenitic and ferritic microstructures, offering a balance of strength and corrosion resistance.

Composition Highlights (Typical)

Duplex Steel UNS S31803:

• Chromium (Cr): 21 – 23% → Enhances corrosion resistance
• Nickel (Ni): 4.5 – 6.5% → Improves toughness
• Molybdenum (Mo): 2.5 – 3.5% → Increases resistance to pitting
• Nitrogen (N): 0.08 – 0.20% → Enhances strength and corrosion resistance
• Carbon (C): ≤ 0.03%
• Iron (Fe): Balance

Key Advantage: Dual-phase microstructure provides high strength and excellent resistance to stress corrosion cracking.

Key Features of Duplex Steel UNS S31803 Flanges

• High strength: Nearly twice the strength of standard austenitic stainless steels
• Excellent corrosion resistance: Suitable for harsh and aggressive environments
• Superior resistance to pitting and crevice corrosion
• High resistance to chloride stress corrosion cracking
• Good fatigue strength: Performs well under cyclic loads
• Cost-effective: Lower nickel content reduces cost compared to austenitic grades
• Long service life: Minimal maintenance required

Mechanical Properties

• Tensile Strength: ~620 – 880 MPa → Very high load-bearing capacity
• Yield Strength: ≥ 450 MPa → Excellent resistance to deformation
• Elongation: ≥ 25% → Good ductility

These properties make duplex steel ideal for high-pressure and structural applications.

Physical Properties

• Density: ~7.8 g/cm³ → Slightly lighter than austenitic steels
• Melting Range: 1350 – 1450°C → Suitable for high-temperature applications
• Modulus of Elasticity: ~200 GPa → High stiffness
• Thermal Conductivity: ~19 W/m•K → Better heat transfer
• Coefficient of Expansion: ~13 µm/m°C → Lower expansion than austenitic steels

Corrosion Resistance

Duplex Steel S31803 flanges offer excellent resistance to:

• Chloride environments: Ideal for marine and offshore applications
• Pitting and crevice corrosion: Enhanced by molybdenum content
• Stress corrosion cracking: Superior compared to 300 series stainless steel
• Acidic and chemical environments
• Seawater exposure

Heat Treatment

• Solution Annealing: 1020 – 1100°C
• Rapid cooling (water quenching)

This process ensures optimal phase balance and corrosion resistance.

Weldability

• TIG (GTAW): High-quality welds
• MIG (GMAW): Efficient welding process
• SMAW: Suitable for heavy-duty applications

Recommendations:

• Use low heat input
• Use matching filler materials
• Maintain proper phase balance

Machinability

• Moderate machinability
• Use rigid tooling and carbide inserts
• Maintain controlled cutting speeds
• Apply sufficient coolant

Standards & Specifications

• ASTM A182
• ASME SA182
• ANSI B16.5
• ANSI B16.47
• ASTM A240

These standards ensure global compliance and quality assurance.

Available Types of Duplex Steel Flanges

• Weld Neck Flanges → High-pressure systems
• Slip-On Flanges → Easy installation
• Blind Flanges → Pipe end closure
• Socket Weld Flanges → Small pipelines
• Threaded Flanges → Non-weld systems
• Lap Joint Flanges → Easy dismantling
• Orifice Flanges → Flow measurement

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
• Type: Forged

Surface Finish:

• Pickled → Clean and corrosion-resistant
• Polished → Smooth finish
• Machined → Precision engineered

(Custom sizes available as per requirement)

Applications of Duplex Steel UNS S31803 Flanges

• Oil & Gas Industry: Used in offshore platforms and subsea pipelines.
• Chemical Processing: Handles aggressive chemicals and acids.
• Marine Industry: Ideal for seawater and saltwater applications.
• Power Generation: Used in heat exchangers and cooling systems.
• Desalination Plants: Suitable for high-salinity water systems.

Quality Testing & Inspection

• Chemical composition analysis → Ensures correct grade
• Mechanical testing → Verifies strength
• Dimensional inspection → Confirms accuracy
• Surface testing → Detects defects
• PMI testing → Confirms material identity

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-quality wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global shipping

Why Choose Virami Steel Hub?

• Leading duplex steel flange manufacturer in Mumbai
• Large stock availability
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

Duplex Steel UNS S31803 Flanges offer an excellent combination of high strength and superior corrosion resistance, making them ideal for demanding applications in oil & gas, marine, chemical processing, and desalination industries.

Virami Steel Hub provides high-quality duplex steel flanges that meet global standards, ensuring durability, performance, and long-term reliability.
