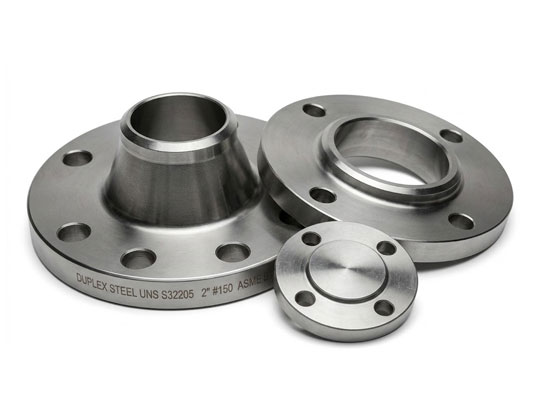

Duplex Steel UNS S32205 Flanges

What are Duplex Steel UNS S32205 Flanges?

Duplex Steel UNS S32205 flanges are piping components used to:

• Connect piping systems: Provide strong and leak-proof joints between pipes and equipment
• Handle high-pressure applications: Suitable for heavy-duty industrial systems
• Resist corrosion: Ideal for chloride-rich and chemical environments
• Improve operational efficiency: Ensure long-lasting and reliable performance

These flanges are made from duplex stainless steel, featuring a balanced austenitic and ferritic microstructure that offers both high strength and excellent corrosion resistance.

Composition Highlights (Typical)

Duplex Steel UNS S32205:

• Chromium (Cr): 22 – 23% → Enhances corrosion resistance
• Nickel (Ni): 4.5 – 6.5% → Improves toughness
• Molybdenum (Mo): 3.0 – 3.5% → Increases resistance to pitting
• Nitrogen (N): 0.14 – 0.20% → Boosts strength and corrosion resistance
• Carbon (C): ≤ 0.03%
• Iron (Fe): Balance

Key Advantage: Optimized chemistry provides superior resistance to pitting, crevice corrosion, and stress corrosion cracking.

Key Features of Duplex Steel UNS S32205 Flanges

• High strength Approximately twice the strength of standard stainless steels
• Excellent corrosion resistance Suitable for harsh and aggressive environments
• Superior resistance to pitting and crevice corrosion
• High resistance to chloride stress corrosion cracking
• Good fatigue strength Performs well under cyclic loading
• Cost-effective solution Lower nickel content reduces material cost
• Long service life Minimal maintenance required

Mechanical Properties

• Tensile Strength : ~620 – 880 MPa → Excellent load-bearing capacity
• Yield Strength : ≥ 450 MPa → High resistance to deformation
• Elongation : ≥ 25% → Good ductility

These properties make S32205 ideal for high-pressure and structural applications.

Physical Properties

• Density: ~7.8 g/cm³ → Lightweight compared to austenitic steels
• Melting Range: 1350 – 1450°C → Suitable for high-temperature use
• Modulus of Elasticity: ~200 GPa → High stiffness
• Thermal Conductivity: ~19 W/m•K → Efficient heat transfer
• Coefficient of Expansion: ~13 µm/m°C → Lower thermal expansion

Corrosion Resistance

Duplex Steel S32205 flanges offer excellent resistance to:

• Chloride environments: Ideal for marine and offshore applications
• Pitting and crevice corrosion: Enhanced by molybdenum and nitrogen
• Stress corrosion cracking: Superior compared to austenitic stainless steels
• Chemical exposure: Suitable for aggressive industrial chemicals
• Seawater and saline conditions

Heat Treatment

• Solution Annealing: 1020 – 1100°C
• Rapid cooling (water quenching)

This ensures optimal phase balance and corrosion resistance.

Weldability

• TIG (GTAW) → High-quality welds
• MIG (GMAW) → Efficient production welding
• SMAW → Suitable for industrial applications

Recommendations:

• Use low heat input
• Use matching filler materials
• Maintain proper phase balance

Machinability

• Moderate machinability
• Use carbide tooling for better performance
• Maintain controlled cutting speeds
• Apply adequate coolant

Standards & Specifications

• ASTM A182
• ASME SA182
• ANSI B16.5
• ANSI B16.47
• ASTM A240

These standards ensure global quality compliance.

Available Types of Duplex Steel Flanges

• Weld Neck Flanges → High-pressure applications
• Slip-On Flanges → Easy installation
• Blind Flanges → Pipe end closure
• Socket Weld Flanges → Small pipelines
• Threaded Flanges → Non-weld systems
• Lap Joint Flanges → Easy dismantling
• Orifice Flanges → Flow measurement

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
• Type: Forged

Surface Finish:

• Pickled → Clean and corrosion-resistant
• Polished → Smooth finish
• Machined → Precision engineered

(Custom sizes available as per requirement)

Applications of Duplex Steel UNS S32205 Flanges

• Oil & Gas Industry: Used in offshore platforms, pipelines, and subsea systems.
• Chemical Processing: Handles aggressive chemicals and acids.
• Marine Industry: Ideal for seawater handling systems.
• Power Generation: Used in cooling and heat exchange systems.
• Desalination Plants: Suitable for high-salinity water systems.

Quality Testing & Inspection

All flanges undergo strict quality checks:

• Chemical composition testing → Ensures correct grade
• Mechanical testing → Verifies strength and durability
• Dimensional inspection → Confirms accuracy
• Surface testing → Detects defects
• PMI testing → Confirms material identity

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-quality wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global shipping

Why Choose Virami Steel Hub?

• Trusted duplex steel flange manufacturer in Mumbai
• Large stock availability
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

Duplex Steel UNS S32205 Flanges are an ideal solution for industries requiring high strength and excellent corrosion resistance, especially in chloride-rich and aggressive environments. Their durability, cost-effectiveness, and superior mechanical properties make them widely used in oil & gas, marine, chemical, and desalination industries.

Virami Steel Hub provides high-quality Duplex Steel S32205 flanges that meet global standards, ensuring long-term performance, safety, and reliability
