Duplex Steel UNS S31803 Pipe Fittings – Manufacturer, Supplier & Exporter in Mumbai, India

What are Duplex Steel UNS S31803 Pipe Fittings?

Duplex Steel UNS S31803 Pipe Fittings are components used to connect, control, and redirect piping systems in industrial applications. They are manufactured from Duplex Stainless Steel UNS S31803, which has a balanced microstructure of austenite and ferrite, providing a combination of high strength and excellent corrosion resistance.

Duplex stainless steel contains chromium, nickel, molybdenum, and nitrogen, which provide enhanced resistance to corrosion, pitting, and stress corrosion cracking.

SS UNS S31803 pipe fittings are commonly used for:

• Connecting pipes
• Changing flow direction
• Branching pipeline systems
• Controlling fluid movement

These fittings are widely used in oil & gas, chemical processing, marine, offshore, desalination, and power generation industries.

Key Features of Duplex Steel UNS S31803 Pipe Fittings

Duplex Steel UNS S31803 pipe fittings provide several advantages for industrial piping systems.

• Excellent corrosion resistance
• High strength compared to austenitic stainless steels
• Superior resistance to pitting and crevice corrosion
• Good resistance to stress corrosion cracking
• Excellent durability and long service life
• Good weldability and fabrication properties
• Suitable for harsh and aggressive environments
• Good performance at high pressure conditions

These features make Duplex Steel S31803 pipe fittings a reliable choice for critical industrial applications.

Chemical Composition of Duplex Steel UNS S31803 Pipe Fittings (%)

The typical chemical composition of Duplex Steel UNS S31803 includes:

• Chromium (Cr): 21 – 23%
• Nickel (Ni): 4.5 – 6.5%
• Molybdenum (Mo): 2.5 – 3.5%
• Nitrogen (N): 0.08 – 0.20%
• Carbon (C): 0.03% maximum
• Manganese (Mn): 2% maximum
• Silicon (Si): 1% maximum
• Phosphorus (P): 0.03% maximum
• Sulfur (S): 0.02% maximum
• Iron (Fe): Balance

Role of Key Alloying Elements

• Chromium (Cr): Chromium enhances corrosion resistance and protects the steel surface by forming a passive oxide layer.
• Nickel (Ni): Nickel improves toughness, ductility, and structural stability.
• Molybdenum (Mo):Molybdenum significantly improves resistance to pitting and crevice corrosion, especially in chloride environments.
• Nitrogen (N):Nitrogen increases strength and enhances corrosion resistance.

Mechanical Properties of Duplex Steel UNS S31803 Pipe Fittings

Duplex Steel UNS S31803 pipe fittings offer excellent mechanical strength suitable for high-pressure industrial systems.

• Tensile Strength: 620 – 880 MPa
• Yield Strength: Minimum 450 MPa
• Elongation: Minimum 25%
• Hardness: Maximum 290 HB
• Density: 7.8 g/cm³

These properties provide superior strength compared to standard stainless steels.

Physical Properties

Duplex Steel UNS S31803 pipe fittings provide stable physical characteristics across various operating conditions.

• Melting Range: 1350 – 1400°C
• Modulus of Elasticity: 200 GPa
• Thermal Conductivity: 19 W/m·K
• Electrical Resistivity: 0.85 µΩ·m
• Coefficient of Thermal Expansion: 13.7 µm/m°C

These properties ensure excellent structural integrity and thermal stability.

Corrosion Resistance

One of the biggest advantages of Duplex Steel UNS S31803 pipe fittings is their exceptional corrosion resistance.

They offer strong resistance to:

• Pitting corrosion
• Crevice corrosion
• Stress corrosion cracking
• Chloride environments
• Seawater exposure
• Industrial chemicals

This makes them ideal for offshore platforms, marine environments, chemical plants, and desalination systems.

Heat Treatment

Duplex Steel UNS S31803 is generally supplied in the solution annealed condition.

Solution Annealing Processs

• Temperature Range:1020 – 1100°C
• Rapid cooling after heating

This process helps maintain the correct balance of austenite and ferrite phases and ensures optimal corrosion resistance and mechanical properties.

Weldability

Duplex Steel UNS S31803 pipe fittings have good weldability using common welding techniques.

Common Welding Processes

• TIG Welding (GTAW)
• MIG Welding (GMAW)
• Shielded Metal Arc Welding (SMAW)

Welding Recommendations

• Maintain controlled heat input
• Use appropriate duplex filler materials
• Avoid excessive heat buildup
• Ensure proper cooling

These practices help maintain the correct duplex microstructure.

Machinability

Duplex Steel UNS S31803 has moderate machinability due to its high strength.

Recommended machining practices:

• Use rigid cutting tools
• Use carbide tooling
• Maintain controlled cutting speeds
• Use adequate lubrication or coolant

Standards & Specifications

Virami Steel Hub supplies Duplex Steel UNS S31803 pipe fittings according to international standards.

• ASTM A815 UNS S31803
• ASME SA815
• ANSI B16.9
• ASTM A182 F51
• ASTM A276

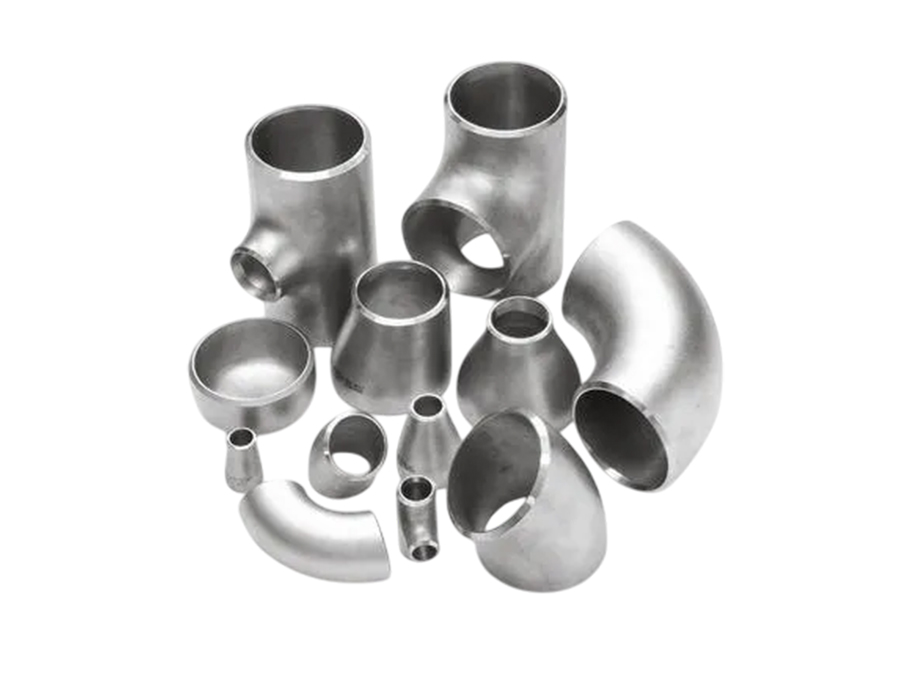

Available Types of Duplex Steel UNS S31803 Pipe Fittings

We supply a wide range of Duplex Steel pipe fittings including:

• Elbows (45° and 90°)
• Tees (Equal and Reducing)
• Reducers (Concentric and Eccentric)
• Pipe Caps
• Stub Ends
• Cross Fittings
• Couplings

Available Sizes

• Size Range: ½ inch to 48 inches
• Thickness: SCH 10, SCH 20, SCH 40, SCH 80, SCH 160
• Available: Seamless and welded fittings

Surface Finish

• Pickled finish
• Polished finish
• Matte finish

Custom sizes are available based on industrial project requirements.

Applications of Duplex Steel UNS S31803 Pipe Fittings

Duplex Steel pipe fittings are widely used across various industries.

Oil & Gas Industry

• Offshore platforms
• Pipeline systems
• Refinery equipment

Chemical Processing Industry

• Chemical transport pipelines
• Processing plants

Marine Industry

• Seawater pipelines
• Shipbuilding systems

Desalination Plants

• Seawater treatment pipelines
• Water purification systems

Power Generation Industry

• Cooling water systems
• High-pressure piping systems

Quality Testing & Inspection

At Virami Steel Hub, all Duplex Steel pipe fittings undergo strict quality control procedures.

Testing includes:

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface finish inspection
• Positive Material Identification (PMI)

We provide Mill Test Certificates (MTC) and support third-party inspection services.

Packaging & Delivery

Virami Steel Hub ensures safe packaging and reliable shipping.

• Export-grade wooden boxes or pallets
• Protective wrapping to prevent damage
• Proper product labeling and traceability
• Secure international shipping

Our logistics network ensures timely delivery worldwide.

Why Choose Virami Steel Hub?

• Trusted Duplex Steel Pipe Fittings manufacturer in Mumbai
• Large ready stock availability
• Competitive industrial pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong global export network
• Reliable customer support

Conclusion

Duplex Steel UNS S31803 Pipe Fittings are widely used in industrial piping systems due to their high strength, superior corrosion resistance, and excellent durability.

These fittings are ideal for industries such as oil & gas, chemical processing, marine, desalination, and power generation, where resistance to aggressive environments is essential.

Virami Steel Hub supplies high-quality Duplex Steel UNS S31803 pipe fittings manufactured according to international standards to ensure reliable performance and long service life in demanding industrial applications.
