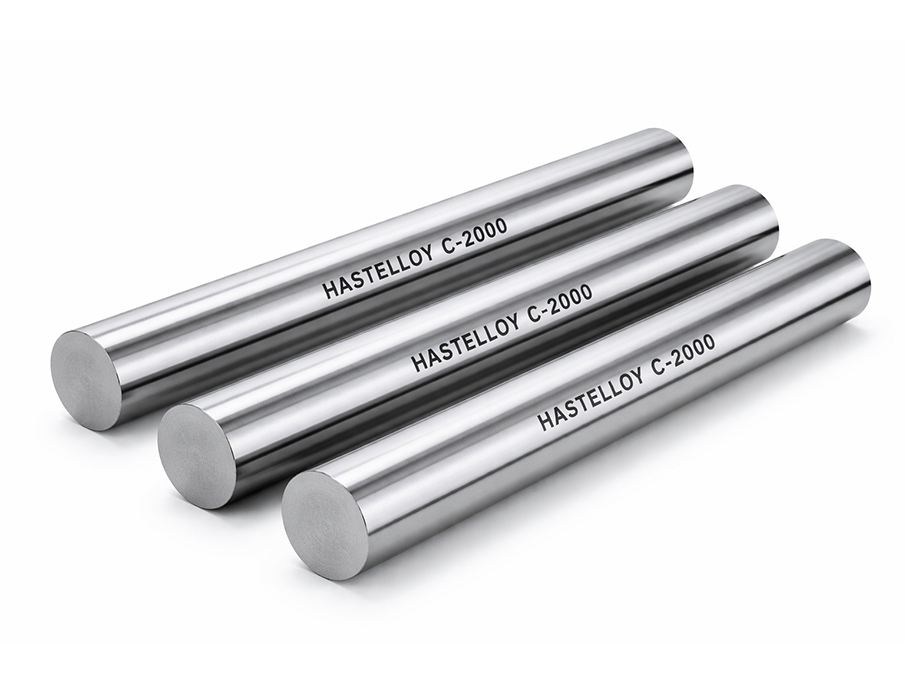

Hastelloy C-2000 Round Bars Manufacturer, Supplier & Exporter in Mumbai, India

What is Hastelloy C-2000 Round Bar?

Hastelloy C-2000 is a high-performance corrosion-resistant nickel-based alloy that offers enhanced resistance to oxidizing and reducing agents. Developed as an improved version of Hastelloy C-22, C-2000 is engineered for superior performance in chloride-rich environments and oxidizing acids.

Key features of Hastelloy C-2000 round bars:

• Excellent corrosion resistance in oxidizing and reducing chemicals
• Superior resistance to pitting, crevice, and stress corrosion cracking
• High strength and toughness at elevated temperatures
• Good fabricability including welding and forming
• Stable in chloride-containing environments and acidic conditions
• Non-magnetic in annealed condition

Hastelloy C-2000 round bars are widely used in chemical processing equipment, heat exchangers, marine components, and pollution control systems.

Key Features of Hastelloy C-2000 Round Bars

• Exceptional corrosion resistance in oxidizing and reducing environments
• High resistance to chloride-induced pitting and stress corrosion cracking
• Excellent mechanical strength and thermal stability
• Fabricable through machining, forming, and welding
• Non-magnetic and suitable for sensitive applications
• Durable for high-temperature industrial applications
• Ideal for chemical, petrochemical, marine, and aerospace industries

These features make Hastelloy C-2000 round bars a preferred choice for critical chemical processing, marine, and industrial applications.

Chemical Composition of Hastelloy C-2000 (%)

• Nickel (Ni): 55 - 62%
• Molybdenum (Mo): 15 - 17%
• Iron (Fe): 8 - 12%
• Chromium (Cr): 20 - 22%
• Copper (Cu): 0.5 - 1.0%
• Cobalt (Co): 1 - 3%
• Tungsten (W): ≤ 1%
• Carbon (C): ≤ 0.02%
• Manganese (Mn): ≤ 1%
• Silicon (Si): ≤ 0.5%

Role of Alloying Elements

• Nickel: Provides corrosion resistance and toughness
• Molybdenum: Enhances pitting and crevice corrosion resistance
• Chromium: Improves oxidation resistance and mechanical strength
• Iron and Cobalt: Adds structural stability and high-temperature performance
• Copper: Enhances resistance to oxidizing acids

This combination ensures superior corrosion resistance, high strength, and durability in harsh chemical and marine environments.

Mechanical Properties of Hastelloy C-2000 Round Bars

Hastelloy C-2000 exhibits excellent mechanical properties, ensuring strength and reliability under demanding conditions:

• Tensile Strength: 690 – 760 MPa
• Yield Strength: 275 – 350 MPa
• Elongation: 40 – 50%
• Hardness (HRB): 80 – 90
• Impact Toughness: Excellent at ambient and elevated temperatures

These properties make Hastelloy C-2000 round bars suitable for pressure vessels, chemical reactors, heat exchangers, and structural components exposed to aggressive environments.

Physical Properties of Hastelloy C-2000 Round Bars

• Density: 8.85 g/cm³
• Melting Range: 1320 – 1380°C
• Thermal Conductivity: 11 – 13 W/m·K
• Electrical Resistivity: 1.0 µΩ·m
• Modulus of Elasticity: 207 GPa
• Coefficient of Thermal Expansion: 13.0 µm/m°C

The combination of high density, thermal stability, and corrosion resistance makes Hastelloy C-2000 round bars ideal for high-temperature chemical and industrial applications.

Heat Treatment of Hastelloy C-2000 Round Bars

Hastelloy C-2000 is generally supplied in annealed condition, which ensures optimal corrosion resistance and mechanical properties.

Annealing Process

• Heat to 1175 – 1220°C
• Rapid water or air quench to maintain mechanical properties
• Relieves residual stresses and restores ductility

Annealing ensures high corrosion resistance, dimensional stability, and machinability.

Machinability of Hastelloy C-2000 Round Bars

Hastelloy C-2000 is moderately machinable, but requires specialized tooling due to its high work-hardening tendency:

• Use sharp carbide or polycrystalline diamond (PCD) tools
• Employ slow cutting speeds and high coolant flow
• Avoid excessive heat generation to prevent surface work hardening
• Suitable for turning, milling, drilling, and precision machining

Proper machining ensures smooth surfaces and accurate dimensions for chemical and industrial applications.

Corrosion Resistance of Hastelloy C-2000 Round Bars

• Exceptional resistance to oxidizing and reducing acids
• Superior resistance to chloride-induced stress corrosion cracking
• Stable in nitric acid, hydrochloric acid, sulfuric acid, and phosphoric acid
• Performs well in marine and offshore environments

Hastelloy C-2000 round bars are ideal for chemical processing, seawater handling, and industrial systems exposed to corrosive media.

Weldability of Hastelloy C-2000 Round Bars

Hastelloy C-2000 can be welded using standard arc welding processes:

• TIG (GTAW), MIG (GMAW), and SMAW are suitable
• No preheating generally required
• Filler material: Hastelloy C-2000 compatible weld rods or C-22 filler for optimum corrosion resistance
• Post-weld annealing recommended for maximum performance

Welding ensures strong joints with minimal reduction in corrosion resistance.

Available Sizes & Specifications

Hastelloy C-2000 Round Bars are supplied in:

Standards:

• ASTM B574
• ASME SB574
• ISO 15156 compliant

Size Range:

• Diameter: 6 mm – 250 mm
• Length: 3 m, 6 m, or customized cut lengths
• Tolerances: As per ASTM / ISO standards

Surface Finish:

• Hot Rolled / Bright
• Polished / Machined
• Centerless Ground

Applications of Hastelloy C-2000 Round Bars

Hastelloy C-2000 is widely used in chemical, marine, aerospace, and industrial applications:

Chemical Processing

• Reactors, tanks, and vessels
• Piping for acids and oxidizing chemicals
• Heat exchangers and pumps
• Pollution control equipment

Marine & Offshore

• Seawater handling systems
• Desalination plants and pipelines
• Offshore platforms and structural components

Industrial Applications

• Aerospace components requiring corrosion resistance
• High-temperature industrial machinery
• Pollution control and chemical plant equipment

Advantages of Hastelloy C-2000 Round Bars

• Exceptional corrosion resistance in oxidizing and reducing environments
• High resistance to pitting, crevice, and stress corrosion cracking
• Excellent mechanical strength and toughness at ambient and elevated temperatures
• Fabricable through machining, welding, and forming
• Non-magnetic and highly reliable for industrial applications
• Long-term durability in chemical, marine, and high-temperature industrial environments

Quality Testing & Inspection

All Hastelloy C-2000 round bars undergo:

• Chemical composition verification
• Mechanical property testing
• Hardness and toughness testing
• Dimensional inspection
• Surface finish quality verification

Mill Test Certificates (MTC) are provided per ASTM and ISO standards. Third-party inspection is available upon request.

Why Choose Virami Steel Hub for Hastelloy C-2000 Round Bars?

• Trusted Hastelloy manufacturer and supplier in Mumbai, India
• High-quality chemical, marine, and industrial-grade alloys
• Competitive pricing with global delivery
• Custom sizes, lengths, and surface finishes available
• Certified quality assurance and MTC
• Expertise in chemical processing, marine, aerospace, and industrial applications

Conclusion

Hastelloy C-2000 Round Bars are premium nickel-molybdenum-iron-chromium alloys offering exceptional corrosion resistance, high mechanical strength, and thermal stability. Ideal for chemical processing, marine, aerospace, and high-temperature industrial applications, Hastelloy C-2000 ensures durability, reliability, and superior performance.

Virami Steel Hub supplies certified Hastelloy C-2000 Round Bars with customizable sizes and surface finishes, making it the preferred choice for critical chemical, marine, and industrial engineering applications.
