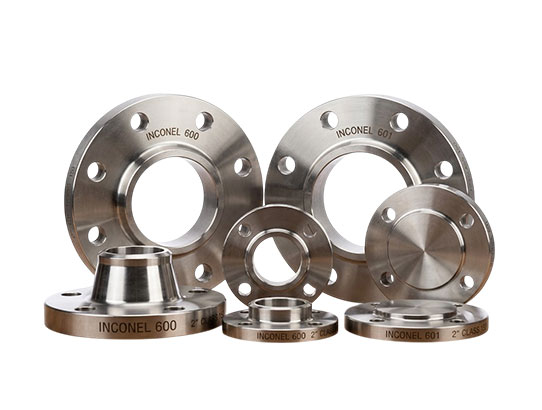

Inconel 600 / 601 Flanges

What are Inconel 600 / 601 Flanges?

Inconel 600 and 601 flanges are high-performance piping components used to:

• Connect piping systems: Provide strong, leak-proof joints between pipes and equipment
• Withstand extreme temperatures: Ideal for high-heat industrial applications
• Resist oxidation and corrosion: Suitable for harsh chemical and thermal environments
• Ensure long-term reliability: Maintain performance under extreme conditions

These flanges are made from nickel-chromium-based alloys known for their excellent resistance to oxidation and scaling at elevated temperatures.

Composition Highlights (Typical)

Inconel 600:

• Nickel (Ni): ≥ 72% → Excellent corrosion resistance
• Chromium (Cr): 14 – 17% → Oxidation resistance
• Iron (Fe): 6 – 10%
• Carbon (C): ≤ 0.15%

Inconel 601:

• Nickel (Ni): 58 – 63% → High-temperature strength
• Chromium (Cr): 21 – 25% → Superior oxidation resistance
• Aluminum (Al): 1 – 1.7% → Enhances scaling resistance
• Iron (Fe): Balance

Key Advantage: Inconel 601 provides better oxidation resistance than 600 due to aluminum addition.

Key Features of Inconel 600 / 601 Flanges

• Excellent high-temperature strength: Maintains performance at elevated temperatures
• Outstanding oxidation resistance: Prevents scaling in heat environments
• Good resistance to carburization and nitriding: Protects against specific chemical interactions
• Superior corrosion resistance: Performs well in chemical environments
• High mechanical strength and durability
• Good weldability and fabrication properties
• Long service life in extreme conditions

Mechanical Properties

Inconel 600:

• Tensile Strength : ~550 MPa
• Yield Strength : ≥ 240 MPa
• Elongation : ≥ 30%

Inconel 601:

• Tensile Strength: ~600 MPa
• Yield Strength: ≥ 240 MPa
• Elongation: ≥ 30%

These properties ensure reliability in high-temperature applications.

Physical Properties

• Density (~8.4 g/cm³): Strong and durable
• Melting Range (1350 – 1410°C): Suitable for extreme heat
• Modulus of Elasticity (~205 GPa): High stiffness
• Thermal Conductivity (~14 W/m•K): Moderate heat transfer
• Coefficient of Expansion (~13.3 µm/m°C): Handles thermal expansion

Corrosion & Heat Resistance

Inconel 600 / 601 flanges offer excellent resistance to:

• High-temperature oxidation and scaling
• Carburization and nitriding environments
• Chemical corrosion: Suitable for acidic and alkaline conditions
• Thermal cycling: Handles repeated heating and cooling
• Industrial furnace environments

These alloys are among the most versatile materials for thermal and chemical processing.

Heat Treatment

• Annealing: 1010 – 1175°C
• Rapid cooling: (air or water quenching)

This improves ductility and maintains corrosion resistance.

Weldability

Inconel 600 / 601 flanges can be welded using:

• TIG (GTAW) → High precision welding
• MIG (GMAW) → Efficient fabrication
• SMAW → Industrial applications

Recommendations:

• Use matching filler materials
• Maintain clean welding conditions
• Control heat input

Machinability

• Moderate machinability due to high nickel content
• Use carbide tools
• Maintain low cutting speeds
• Apply sufficient coolant to reduce heat

Standards & Specifications

• ASTM B564: Standard for nickel alloy forged flanges
• ASME SB564: Equivalent ASME specification
• ANSI B16.5 / B16.47: Dimensions and pressure ratings
• ASTM B168: Material standard

These standards ensure global quality and compatibility.

Available Types of Inconel Flanges

• Weld Neck Flanges: High-pressure systems
• Slip-On Flanges: Easy installation
• Blind Flanges: Pipe closure
• Socket Weld Flanges: Small pipelines
• Threaded Flanges: Non-weld systems
• Lap Joint Flanges: Easy maintenance
• Orifice Flanges: Flow measurement

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
• Type: Forged

Surface Finish:

• Pickled → Clean surface
• Polished → Smooth finish
• Machined → Precision engineered

(Custom sizes available as per requirement)

Applications of Inconel 600 / 601 Flanges

• Heat Treatment Industry: Used in furnaces, kilns, and heat exchangers.
• Chemical Processing: Handles corrosive chemicals and high temperatures.
• Petrochemical Industry: Used in high-temperature processing units.
• Power Generation: Suitable for boilers and thermal systems.
• Aerospace Industry: Used in high-temperature components.

Quality Testing & Inspection

All flanges undergo strict quality checks:

• Chemical composition testing: Ensures correct alloy
• Mechanical testing: Verifies strength
• Dimensional inspection: Confirms accuracy
• Surface examination: Detects defects
• PMI testing: Confirms material identity

Mill Test Certificates (MTC) and third-party inspections are provided.

Packaging & Delivery

• Export-quality wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global shipping

Why Choose Virami Steel Hub?

• Trusted Inconel flange manufacturer in Mumbai
• Large inventory availability
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong global export network
• Dedicated customer support

Conclusion

Inconel 600 / 601 Flanges are an excellent choice for high-temperature and corrosive environments, offering superior oxidation resistance, strength, and durability. Their performance makes them ideal for industries such as heat treatment, chemical processing, petrochemicals, and power generation.

Virami Steel Hub delivers high-quality Inconel flanges that meet global standards, ensuring reliability, safety, and long-term performance.
