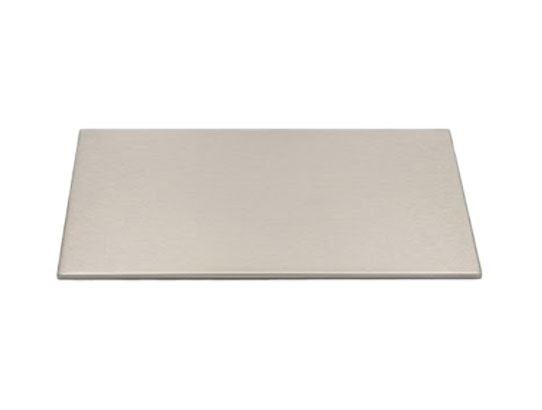

Inconel 800/825 Sheets & Plates

What are Inconel 800/825 Sheets & Plates?

Inconel 800 (UNS N08800) and Inconel 825 (UNS N08825) are nickel-iron-chromium alloys designed for excellent strength and corrosion resistance.

• Inconel 800 is ideal for high-temperature applications requiring resistance to oxidation and carburization.
• Inconel 825 offers enhanced corrosion resistance in acidic environments due to the addition of molybdenum and copper.

Key Functions:

• Withstand high temperatures and thermal stress
• Resist oxidation, scaling, and corrosion
• Perform in acidic and chemical environments
• Ensure long-term durability and reliability

Chemical Composition of Inconel 800/825

Inconel 800 (UNS N08800):

• Nickel (Ni): 30% – 35%
• Chromium (Cr): 19% – 23%
• Iron (Fe): Balance

Inconel 825 (UNS N08825):

• Nickel (Ni): 38% – 46%
• Chromium (Cr): 19.5% – 23.5%
• Molybdenum (Mo): 2.5% – 3.5%
• Copper (Cu): 1.5% – 3.0%
• Iron (Fe): Balance

The addition of molybdenum and copper in Inconel 825 significantly improves resistance to acids and corrosion.

Key Features of Inconel 800/825 Sheets & Platess

• Excellent resistance to high-temperature oxidation
• Superior resistance to carburization and scaling
• Outstanding corrosion resistance in acidic environments (825)
• Good mechanical strength and stability
• Excellent weldability and fabrication
• Resistance to stress corrosion cracking
• Long service life in harsh conditions

Mechanical Properties

Inconel 800:

• Tensile Strength: ~500–750 MPa
• Yield Strength: ~205 MPa
• Elongation: ~30%

Inconel 825:

• Tensile Strength: ~550–750 MPa
• Yield Strength: ~220 MPa
• Elongation: ~30%

Physical Properties

• Density: ~8.0 g/cm³
• Melting Range: ~1350–1400°C
• Modulus of Elasticity: ~200 GPa
• Thermal Conductivity: ~11–13 W/m•K
• Thermal Expansion: Moderate

Corrosion & Oxidation Resistance

Inconel 800/825 sheets and plates offer excellent resistance to:

• High-temperature oxidation and scaling
• Acidic environments (especially sulfuric and phosphoric acids – 825)
• Stress corrosion cracking
• Industrial chemical environments
• Oxidizing and reducing conditions

Inconel 825 provides superior corrosion resistance compared to 800 in aggressive chemical environments.

Heat Treatment

Supplied in annealed condition.

Process:

• Annealing: ~980–1150°C
• Rapid cooling

Weldability

Inconel 800/825 alloys offer excellent weldability.

Welding Methods:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Best Practices:

• Use suitable filler materials
• Maintain clean surfaces
• Control heat input
• Avoid contamination

Machinability

• Moderate machining difficulty
• Requires rigid tooling
• Use sharp carbide tools
• Maintain controlled speeds with proper coolant

Standards & Specifications

• ASTM B409 / ASTM B514
• ASTM B424
• UNS N08800 / N08825
• ASTM B906

Available Types of Sheets & Plates

• Hot Rolled Plates
• Cold Rolled Sheets
• Polished Sheets
• Perforated Sheets
• Custom Cut Sizes

Sizes & Specifications

• Thickness: 0.5 mm to 100 mm
• Width: Up to 2000 mm
• Length: Up to 6000 mm or as required

Surface Finish Options:

• 2B Finish
• No.1 Finish
• Mirror Finish
• Matte Finish

Applications of Inconel 800/825 Sheets & Plates

• Chemical Processing Industry – Acid handling equipment
• Power Plants – Heat exchangers and boilers
• Oil & Gas Industry – Corrosive environments
• Marine Industry – Seawater applications
• Pollution Control Equipment – Scrubbers and stacks
• Furnace Industry – High-temperature components

Quality Testing & Inspection

• Chemical composition testing
• Mechanical testing
• Ultrasonic testing
• Surface inspection
• Positive Material Identification (PMI)

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-grade wooden packaging
• PVC protective coating
• Proper labeling and traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Trusted Inconel 800/825 supplier in Mumbai
• Large inventory and ready stock
• Competitive pricing
• Custom sizes and specifications
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

Inconel 800/825 Sheets & Plates are ideal for applications requiring high-temperature strength and excellent corrosion resistance. While Inconel 800 performs well in heat-intensive environments, Inconel 825 excels in aggressive chemical conditions.

Virami Steel Hub delivers premium-quality Inconel products that ensure durability, efficiency, and long-term performance.
