Monel 400 Pipe Fittings – Manufacturer, Supplier & Exporter in Mumbai, India

What are Monel 400 Pipe Fittings?

Monel 400 Pipe Fittings are piping components used in industrial systems to:

• Connect pipelines
• Change flow direction
• Branch piping systems
• Control fluid flow

These fittings are made from Monel 400, a nickel-copper alloy known for its outstanding resistance to corrosion, especially in marine and chemical environments.

Composition Highlights (Typical):

• Nickel (Ni): 63 – 70%
• Copper (Cu): 28 – 34%
• Iron (Fe): ≤ 2.5%
• Manganese (Mn): ≤ 2%
• Silicon (Si): ≤ 0.5%
• Carbon (C): ≤ 0.3%

Key Features of Monel 400 Pipe Fittings

• Excellent resistance to seawater and marine environments
• High resistance to acids and alkaline solutions
• Good mechanical strength across a wide temperature range
• Excellent resistance to stress corrosion cracking
• Superior resistance to pitting and crevice corrosion
• Good weldability and fabrication properties
• Long service life in harsh conditions
• Reliable performance under pressure

Mechanical Properties

• Tensile Strength: ~550 – 750 MPa
• Yield Strength: ≥ 240 MPa
• Elongation: ≥ 35%
• Hardness: ≤ 150 HB
• Density: 8.80 g/cm³

Physical Properties

• Melting Range: 1300 – 1350°C
• Modulus of Elasticity: ~179 GPa
• Thermal Conductivity: ~21.8 W/m·K
• Electrical Resistivity: ~0.49 µΩ·m
• Coefficient of Thermal Expansion: ~13.9 µm/m°C

Corrosion Resistance

Monel 400 Pipe Fittings offer excellent resistance to:

• Seawater and marine atmospheres
• Hydrofluoric acid and sulfuric acid
• Alkaline solutions
• Saltwater corrosion
• Industrial chemicals

These properties make them ideal for marine and chemical applications.

Heat Treatment

Monel 400 is typically supplied in annealed condition:

• Annealing Temperature:760 – 870°C
• Controlled cooling

This improves ductility and corrosion resistance.

Weldability

Monel 400 offers good weldability using:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Recommendations:

• Use appropriate nickel-based filler metals
• Maintain controlled heat input
• Ensure clean welding surfaces

Machinability

Monel 400 has moderate machinability:

• Use carbide tools
• Maintain low cutting speeds
• Use proper lubrication
• Prevent work hardening

Standards & Specifications

• ASTM B366
• ASME SB366
• ANSI B16.9
• ASTM B164
• ASTM B725

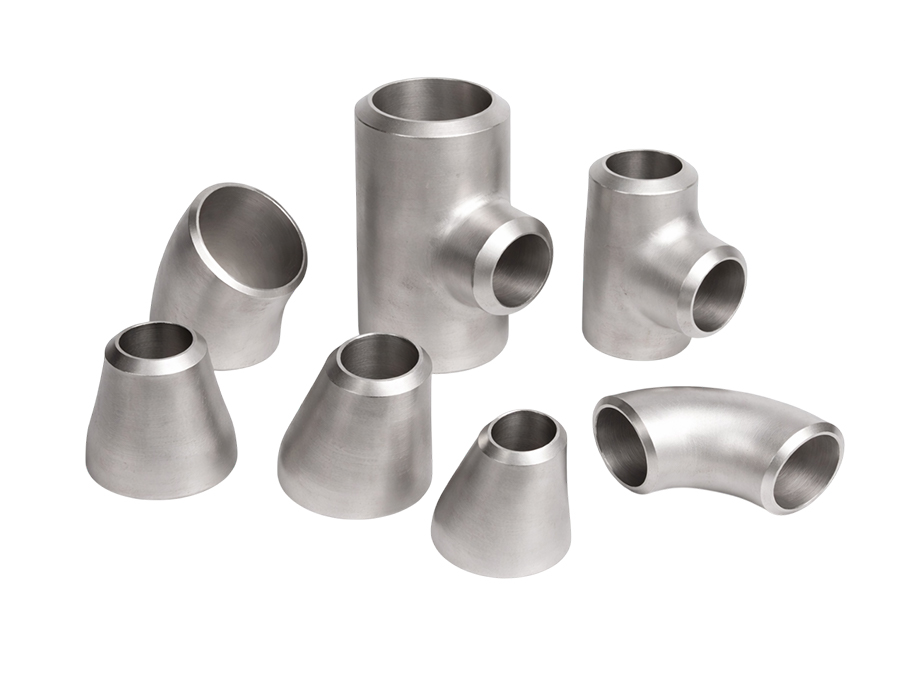

Available Types of Monel 400 Pipe Fittings

• Elbows (45° and 90°)
• Tees (Equal and Reducing)
• Reducers (Concentric and Eccentric)
• Pipe Caps
• Stub Ends
• Cross Fittings
• Couplings

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Thickness: SCH 10, SCH 20, SCH 40, SCH 80, SCH 160
• Types: Seamless and Welded

Surface Finish:

• Pickled
• Polished
• Matte

(Custom sizes available as per requirement)

Applications of Monel 400 Pipe Fittings

Marine Industry

• Seawater piping systems
• Shipbuilding applications

Chemical Processing Industry

• Acid handling systems
• Chemical equipment

Oil & Gas Industry

• Offshore platforms
• Brine and saltwater systems

Power Generation

• Heat exchangers
• Boiler systems

Food Processing Industry

• Clean and corrosion-resistant piping

Quality Testing & Inspection

All fittings undergo strict quality inspection:

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface quality checks
• PMI (Positive Material Identification)

We provide Mill Test Certificates (MTC) and third-party inspection services.

Packaging & Delivery

• Export-grade wooden boxes or pallets
• Protective wrapping
• Proper labeling and traceability
• Secure global shipping

Why Choose Virami Steel Hub?

• Trusted Monel pipe fittings manufacturer in Mumbai
• Ready stock availability
• Competitive industrial pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong global export network
• Reliable customer support

Conclusion

Monel 400 Pipe Fittings are widely used in industries requiring excellent resistance to corrosion, especially in marine and chemical environments. Their durability, strength, and resistance to harsh conditions make them ideal for critical industrial applications.

Virami Steel Hub supplies premium-quality Monel 400 pipe fittings manufactured according to international standards, ensuring long service life and reliable performance.
