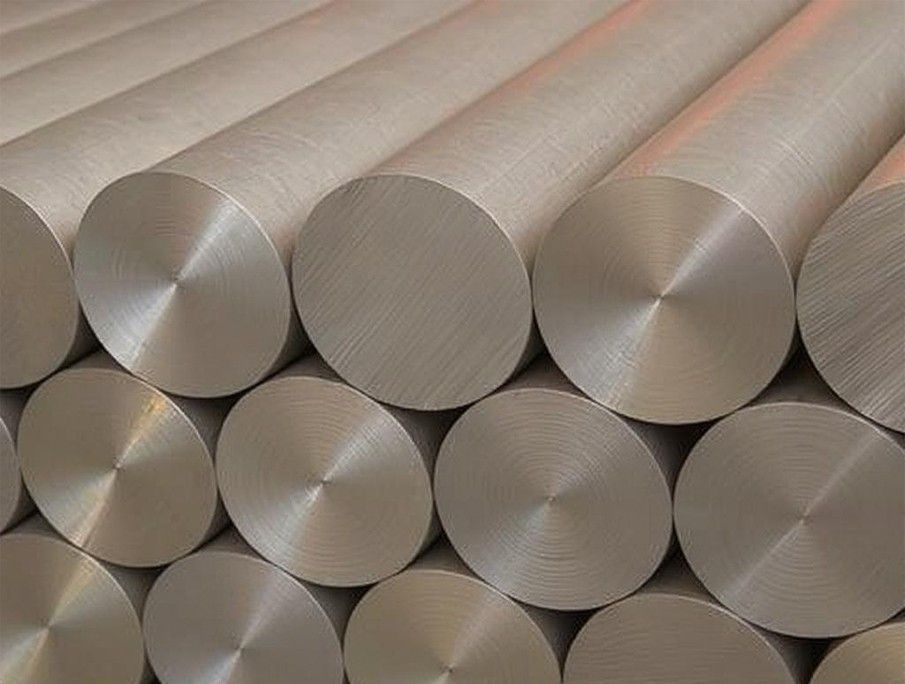

We are Monel 400 round bar and plate manufacturer, supplier, exporter, dealer in Mumbai, India. Monel 400 is a nickel-copper alloy which is very corrosion resistant, strong, and applicable. It averagely has 63 percent nickel and 28-34 percent of copper a few quantities of iron, manganese, carbon, and other trace elements. This alloy places Monel 400 to have a distinctive mixture of properties, which make it extremely corrosion-resistant in different corrosive conditions and seawater corrosion and acidic waters, in particular.
Monel 400 has one of the most remarkable properties due to its high resistance to marine corrosion and biofouling. It has good seawater properties, in contrast to many other stainless steels, and it is commonly used in marine hardware, in pumps, valves, and piping systems in offshore oil and gas platforms and desalination plants, and ship construction. It has resistance to other corrosive media like hydrochloric acid, and sulphuric acid; and alkalis under moderate temperatures.
Monel 400 is also considered to have a superior mechanical strength and toughness throughout an extensive working temperature range including cryogenic temperatures up to approximately 982 C ( 1800 F ). It is ductile and easy to fabricate, weld and machine (requiring care as it is tough).
Superior Corrosion resistance
Monel 400 has high resistance to corrosion in a great number of aggressive environments, particularly, seawater, hydrochloric acid, and alkaline solutions. It is highly pitting, crevice, stress corrosion cracking resistant so due to its nickel copper composition.
Toughness and Strong Strength
The material has excellent mechanical strength and toughness over a wide temperature range; at room temperatures and at both low temperatures (cryogenic) to temperatures of approximately 980 o C (1800 o F). It is also reliable as structural ductility is good as well as pressure applications.
Good weld ability and fabric ability
Conventional fabrication, welding and machine operations produce Monel 400 easily. It is however hard and needs critical machining methods and sharp tooling to prevent excessive wear.
Biofouling and Marine environment Resistance
Monel 400 is an outstanding marine material because it is resistant to biofouling and to saltwater corrosion. This would make it suitable in marine hardware, pumps, valves and desalination plants.
Monel 400 is common in highly corrosive resistance and high mechanical requirements industries particularly in chemical and marine conditions. It is suitable because of its superior abilities in fighting off corrosion by seawater, which makes it a common marine hardware choice, such as pumps, valves, propeller shafts, and heat exchangers aboard ships and deep offshore oil installations. It is resistant to saltwater and biofouling as compared to most other alloys making it to last longer in extreme swarming seas.
Monel 400 is employed in the chemical process industry to process hydrochloric acid, alkalines and other acids. It is widely used on reactor vessels, pipes and heat exchangers, its resistance to corrosion ensures that it is not worn away or even contaminated.
The high- and low-temperature strength and toughness of Monel 400 is another reason why it is handy in aerospace applications, such as in fasteners and structural parts that undergo harsh conditions. It is also applied in nuclear reactor as tolerance rods and other material that need resistance to radiation in the union.
| Element | Content (%) |
|---|---|
| Nickel, Ni | Remainder |
| Copper, Cu | 28-34 |
| Iron, Fe | 2.5 max |
| Manganese, Mn | 2 max |
| Silicon, Si | 0.5 max |
| Carbon, C | 0.3 max |
| Sulphur, S | 0.024 |
Monel 400 nickel-copper alloy is among the most flexible alloys with very good activities of resistance to corrosion, strength, and durability in a broad environment of applications with harsh conditions. The resistance to harsh marine environments, like seawater, solutions like acids and alkaline solutions, and biofouling make it particularly useful in the marine and the chemical industry. The corrosion resistance to pitting, crevice corrosion and stress corrosion cracking make the alloy to serve long in the harsh environments as other metals cannot serve.
Monel 400, besides being corrosion resistant, has very good toughness and strength between cryogenic temperatures (extremely low) to almost 1000 o C with reliability of use even in extreme thermal conditions. The relative simple effort in its manufacturing, welding and machining too add to its attraction because of the extensive application in complicated functions.
