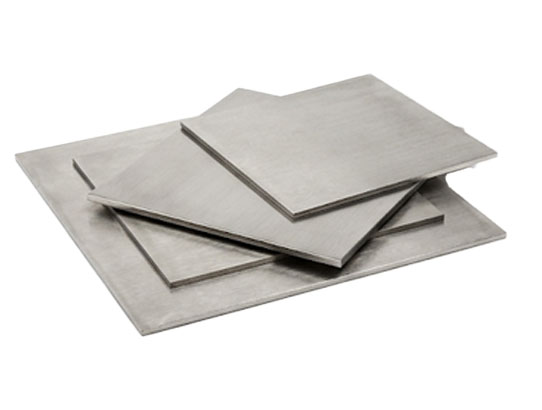

Monel K-500 Sheets & Plates

What are Monel K-500 Sheets & Plates?

Monel K-500 (UNS N05500) is a precipitation-hardenable nickel-copper alloy that combines the excellent corrosion resistance of Monel 400 with enhanced strength and hardness. It is strengthened by the addition of aluminum and titanium.

Key Functions:

• Provide high strength and durability in harsh environments
• Resist corrosion in marine and chemical applications
• Perform efficiently under high stress and pressure
• Ensure long-term reliability in critical applications

Chemical Composition of Monel K-500

Typical Composition:

• Nickel (Ni): 63% – 70%
• Copper (Cu): 27% – 33%
• Aluminum (Al): 2.3% – 3.15%
• Titanium (Ti): 0.35% – 0.85%
• Iron (Fe): ≤ 2%
• Manganese (Mn): ≤ 1.5%

The addition of aluminum and titanium enables precipitation hardening, significantly improving strength.

Key Features of Monel K-500 Sheets & Plates

• Higher strength than Monel 400
• Excellent resistance to seawater and marine environments
• Superior resistance to pitting and crevice corrosion
• Good resistance to stress corrosion cracking
• Excellent wear and abrasion resistance
• Good weldability and fabrication properties
• Long service life in aggressive environments

Mechanical Properties

• Tensile Strength: ~930–1200 MPa
• Yield Strength: ~690–1000 MPa
• Elongation: ~20%
• Hardness: High

Physical Properties

• Density: ~8.4 g/cm³
• Melting Range: ~1315–1350°C
• Modulus of Elasticity: ~180 GPa
• Thermal Conductivity: ~17 W/m•K
• Thermal Expansion: Moderate

Corrosion Resistance

Monel K-500 sheets and plates offer excellent resistance to:

• Seawater and marine environments
• Acidic and alkaline solutions
• Chloride stress corrosion cracking
• Pitting and crevice corrosion
• Industrial chemical environments

It performs similarly to Monel 400 in corrosion resistance, with added strength advantages.

Heat Treatment

Monel K-500 is strengthened through precipitation hardening.

Process:

• Solution Annealing: ~900–980°C
• Aging Treatment: ~480–600°C

This improves strength, hardness, and wear resistance.

Weldability

Monel K-500 offers moderate weldability.

Welding Methods:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Best Practices:

• Use suitable filler materials
• Control heat input
• Avoid cracking during welding
• Maintain clean working conditions

Machinability

• More difficult than Monel 400
• Requires rigid tooling
• Use sharp carbide tools
• Maintain low cutting speeds with proper coolant

Standards & Specifications

• ASTM B865
• UNS N05500
• ASTM B127 (related forms)
• ASME SB865

Available Types of Sheets & Plates

• Hot Rolled Plates
• Cold Rolled Sheets
• Polished Sheets
• Perforated Sheets
• Custom Cut Sizes

Sizes & Specifications

• Thickness: 0.5 mm to 100 mm
• Width: Up to 2000 mm
• Length: Up to 6000 mm or as required

Surface Finish Options:

• 2B Finish
• No.1 Finish
• Mirror Finish
• Matte Finish

Applications of Monel K-500 Sheets & Plates

• Marine Industry – Shafts, fasteners, seawater components
• Oil & Gas Industry – Offshore and high-pressure equipment
• Chemical Processing – Corrosive environments
• Aerospace Industry – High-strength components
• Pump & Valve Industry – Wear-resistant parts
• Power Plants – High-performance applications

Quality Testing & Inspection

• Chemical composition testing
• Mechanical testing
• Ultrasonic testing
• Surface inspection
• Positive Material Identification (PMI)

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-grade wooden packaging
• PVC protective coating
• Proper labeling and traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Trusted Monel K-500 supplier in Mumbai
• Extensive inventory and ready stock
• Competitive pricing
• Custom sizes and specifications
• Compliance with international standards
• Strong global export network
• Dedicated customer support

Conclusion

Monel K-500 Sheets & Plates are an excellent choice for applications requiring both high strength and superior corrosion resistance. Their precipitation-hardened structure makes them ideal for marine, oil & gas, and high-performance industrial applications.

Virami Steel Hub delivers premium-quality Monel K-500 products that ensure durability, reliability, and long-term performance.
