Nickel 200 / 201 Pipe Fittings – Manufacturer, Supplier & Exporter in Mumbai, India

What are Nickel 200 / 201 Pipe Fittings?

Nickel 200 (UNS N02200) and Nickel 201 (UNS N02201) are commercially pure wrought nickel alloys known for their excellent corrosion resistance and high thermal and electrical conductivity.

• Nickel 200 contains higher carbon content and is suitable for moderate temperatures
• Nickel 201 has lower carbon content, making it ideal for high-temperature applications where embrittlement must be avoided

These alloys provide:

• Excellent resistance to alkalis and neutral salts
• Good resistance to organic acids
• Outstanding performance in reducing environments

Nickel 200/201 pipe fittings are widely used in applications requiring purity, corrosion resistance, and reliability.

Key Features of Monel K-500 Pipe Fittings

• Excellent resistance to corrosion in alkaline environments
• High thermal and electrical conductivity
• Good mechanical properties across a wide temperature range
• Resistance to caustic solutions and organic chemicals
• Excellent ductility and formability
• High purity material suitable for critical applications
• Long service life in corrosive environments

Chemical Composition (%)

Nickel 200

• Nickel (Ni): ≥ 99.0%
• Carbon (C): ≤ 0.15%
• Manganese (Mn): ≤ 0.35%
• Silicon (Si): ≤ 0.35%
• Iron (Fe): ≤ 0.40%
• Copper (Cu): ≤ 0.25%

Nickel 201

• Nickel (Ni): ≥ 99.0%
• Carbon (C): ≤ 0.02%
• Manganese (Mn): ≤ 0.35%
• Silicon (Si): ≤ 0.35%
• Iron (Fe): ≤ 0.40%
• Copper (Cu): ≤ 0.25%

Key Difference

Nickel 201 has significantly lower carbon content, improving performance at elevated temperatures.

Mechanical Properties

Nickel 200

• Tensile Strength: 380 – 550 MPa
• Yield Strength: ≥ 100 MPa
• Elongation: ~40%
• Hardness: Up to 150 HB

Nickel 201

• Tensile Strength: 345 – 520 MPa
• Yield Strength: ≥ 80 MPa
• Elongation: ~40%
• Hardness: Up to 140 HB
• Density: 8.89 g/cm³

Physical Properties

• Melting Range: 1435 – 1446°C
• Modulus of Elasticity: 200 GPa
• Thermal Conductivity: 70 W/m·K
• Electrical Resistivity: 0.10 µΩ·m
• Thermal Expansion: 13.4 µm/m°C

Corrosion Resistance

Nickel 200 / 201 pipe fittings provide excellent resistance to:

• Caustic alkalis
• Neutral and alkaline salt solutions
• Organic acids
• Reducing chemical environments
• Distilled and natural water

They are not recommended for strongly oxidizing environments but perform exceptionally well in reducing conditions.

Heat Treatment

Nickel 200/201 are typically solution annealed:

Annealing Process:

• Temperature:700 – 900°C
• Rapid cooling

This enhances ductility and corrosion resistance.

Weldability

Nickel 200 / 201 pipe fittings offer excellent weldability and are compatible with:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Welding Recommendations

• Clean surfaces thoroughly
• Use appropriate filler metals
• Avoid contamination
• Maintain controlled heat input

Machinability

Nickel alloys have moderate machinability:

• Use sharp carbide tools
• Maintain low cutting speeds
• Use adequate coolant
• Avoid work hardening

Standards & Specifications

• ASTM B366
• ASME SB366
• UNS N02200 / N02201
• ASTM B160 / B161

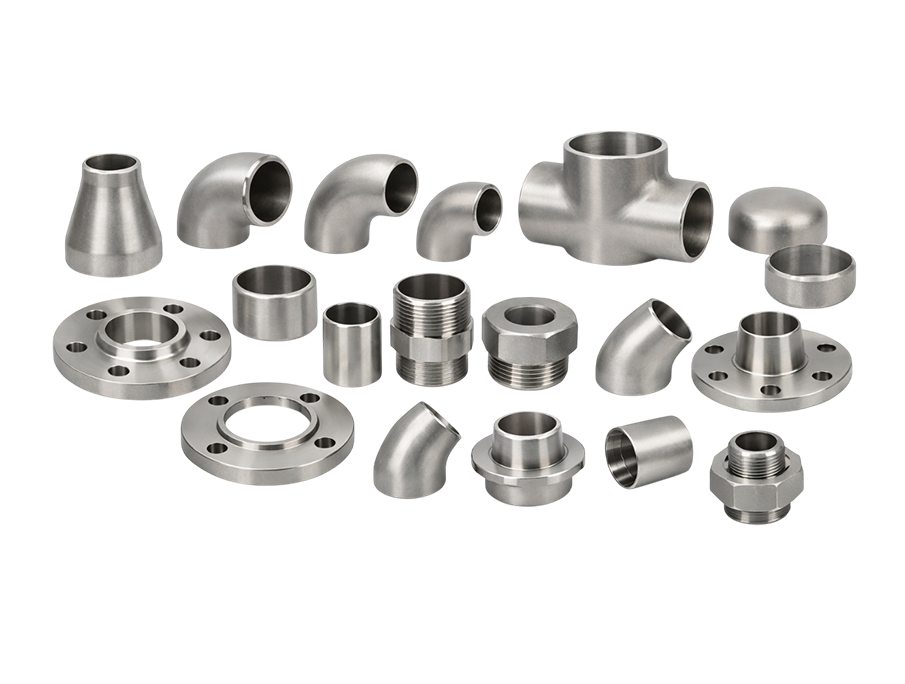

Available Types

• Elbows (45°, 90°)
• Tees (Equal & Reducing)
• Reducers
• Stub Ends
• Caps
• Cross Fittings

Available Sizes & Finishes

• Size Range: ½” to 48”
• Thickness: SCH 10 to SCH XXS

Surface Finish:

• Pickled
• Polished
• Sandblasted

Custom sizes available as per requirement.

Applications

Chemical Processing Industry

• Caustic handling systems
• Chemical storage tanks

Food Processing Industry

• Handling food-grade materials

Marine Industry

• Seawater applications

Electronics Industry

• High-conductivity components

Aerospace & Power

• Heat exchangers
• Thermal systems

Quality Testing & Inspection

We ensure strict quality control through:

• Chemical composition analysis
• Mechanical testing
• Dimensional inspection
• Surface quality checks
• PMI testing

Mill Test Certificates (MTC) and third-party inspection available.

Packaging & Delivery

• Export-grade packaging
• Wooden boxes and pallets
• Proper labeling and traceability
• Safe and timely delivery worldwide

Why Choose Virami Steel Hub?

• Leading Nickel alloy fittings manufacturer in Mumbai
• Large stock availability
• Competitive pricing
• Custom solutions available
• Compliance with international standards
• Strong export network
• Reliable customer support

Conclusion

Nickel 200 / 201 Pipe Fittings are high-purity, corrosion-resistant components ideal for applications involving caustic and reducing environments. With excellent thermal conductivity and mechanical properties, they are widely used across industries such as chemical processing, food processing, marine, and power generation.

Virami Steel Hub offers premium-quality Nickel 200 / 201 pipe fittings manufactured to international standards, ensuring reliability, durability, and long service life.
