SMO 254 Flanges

What are SMO 254 Flanges?

SMO 254 flanges are high-alloy austenitic stainless steel piping components made from UNS S31254, known for their exceptional resistance to chlorides, pitting, and crevice corrosion. These flanges are widely used in industries where conventional stainless steel fails under aggressive environments.

SMO 254 is specifically designed for use in seawater, chemical processing, and high-salinity conditions.

Key Functions:

• Provide strong and leak-proof pipe connections
• Resist corrosion in highly aggressive environments
• Allow easy installation and maintenance
• Ensure long-term system reliability

Chemical Composition of SMO 254

SMO 254 has a unique composition that provides superior corrosion resistance.

Typical Composition:

• Chromium (Cr): 19.5% – 20.5%
• Nickel (Ni): 17.5% – 18.5%
• Molybdenum (Mo): 6.0% – 6.5%
• Nitrogen (N): 0.18% – 0.22%
• Copper (Cu): 0.5% – 1.0%
• Iron (Fe): Balance

High molybdenum and nitrogen content enhance resistance to pitting and crevice corrosion.

Key Features of SMO 254 Flanges

SMO 254 flanges offer exceptional properties:

• Outstanding Resistance to Pitting and Crevice Corrosion
• Excellent Performance in Seawater and Chloride Environments
• High Strength and Durability
• Good Weldability and Fabrication
• Resistance to Stress Corrosion Cracking
• Superior Performance Compared to Standard Stainless Steel
• Long Service Life in Aggressive Conditions

Mechanical Properties

SMO 254 provides strong mechanical performance:

• Tensile Strength: ~650 MPa
• Yield Strength: ~300 MPa
• Elongation: ~35%
• Hardness: Moderate

These properties ensure reliability under pressure and stress.

Physical Properties

• Density: ~8.0 g/cm³
• Melting Range: ~1320–1390°C
• Modulus of Elasticity: ~200 GPa
• Thermal Conductivity: ~14 W/m•K
• Thermal Expansion: Moderate

Corrosion Resistance

SMO 254 flanges offer excellent resistance to:

• Chloride-induced pitting and crevice corrosion
• Seawater and brine solutions
• Acidic and oxidizing environments
• Stress corrosion cracking
• Industrial pollutants

This makes them superior to grades like 316L in aggressive environments.

Heat Treatment

SMO 254 is typically supplied in solution annealed condition.

Heat Treatment Process:

• Solution Annealing: ~1100–1150°C
• Rapid cooling

This ensures maximum corrosion resistance and strength.

Weldability

SMO 254 flanges offer good weldability with proper precautions.

Welding Methods:

• TIG (GTAW)
• MIG (GMAW)

Best Practices:

• Use low heat input
• Use suitable filler materials
• Maintain clean conditions
• Avoid contamination

Proper welding ensures strong joints and maintains material properties.

Machinability

• Moderate machining difficulty
• Use sharp carbide tools
• Maintain low cutting speeds
• Apply coolant

Standards & Specifications

SMO 254 flanges are manufactured according to:

• ASTM A182 F44 (UNS S31254)
• ASME SA182
• ANSI B16.5 – Pipe flanges
• ANSI B16.47 – Large diameter flanges

These standards ensure quality and global compatibility.

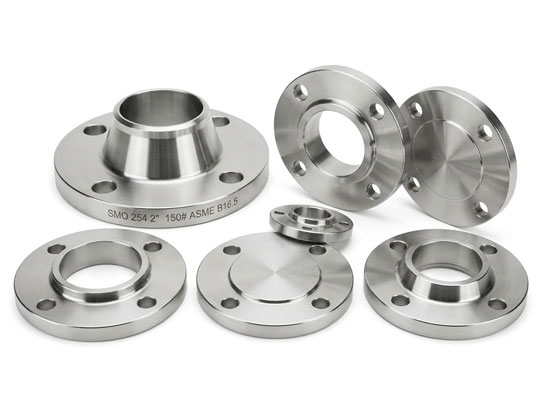

Available Types of SMO 254 Flanges

We offer a wide range of flange types:

• Weld Neck Flanges: High-pressure systems
• Slip-On Flanges: Easy installation
• Blind Flanges: Closing pipe ends
• Socket Weld Flanges: Small diameter pipes
• Threaded Flanges: No welding required
• Lap Joint Flanges: Easy dismantling
• Orifice Flanges: Flow measurement

Sizes & Specifications

• Size Range: ½” to 48”
• Pressure Ratings: 150# to 2500#
• Construction: Forged

Surface Finish Options:

• Pickled
• Polished
• Machined

Applications of SMO 254 Flanges

SMO 254 flanges are widely used in industries requiring extreme corrosion resistance.

• Marine Industry Used in seawater piping systems and offshore structures.
• Chemical Processing Handles aggressive chemicals and acids.
• Desalination Plants Ideal for saltwater treatment systems.
• Oil & Gas Industry Used in corrosive offshore environments.
• Power Plants Used in heat exchangers and cooling systems.

Quality Testing & Inspection

Each flange undergoes strict quality control:

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface defect testing
• Positive Material Identification (PMI)

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-grade wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Trusted SMO 254 flange manufacturer in Mumbai
• Extensive inventory and ready stock
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

SMO 254 Flanges (UNS S31254) are a premium solution for industries requiring exceptional corrosion resistance, especially in chloride-rich and seawater environments. Their superior performance, durability, and strength make them ideal for marine, chemical, and offshore applications.

With a strong focus on quality and reliability, Virami Steel Hub delivers SMO 254 flanges that ensure long-term performance and efficiency in critical industrial systems.
