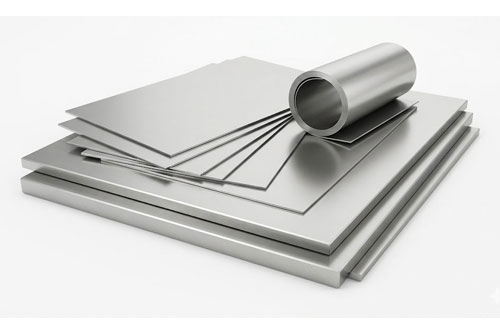

SMO 254 Sheets & Plates

What are SMO 254 Sheets & Plates?

SMO 254 Sheets & Plates are high-alloy austenitic stainless steel products made from UNS S31254.

This material is specifically designed to provide exceptional resistance to chloride-induced corrosion, pitting, and crevice corrosion, making it ideal for highly aggressive environments.

SMO 254 is widely used where conventional stainless steels like 316L fail.

Key Functions:

• Provide superior corrosion resistance in chloride environments
• Withstand aggressive chemical exposure
• Maintain strength and durability under extreme conditions
• Ensure long-term system reliability

Chemical Composition of SMO 254

SMO 254 has a unique composition that enhances corrosion resistance.

Typical Composition:

• Chromium (Cr): 19.5% – 20.5%
• Nickel (Ni): 17.5% – 18.5%
• Molybdenum (Mo): 6.0% – 6.5%
• Nitrogen (N): 0.18% – 0.22%
• Copper (Cu): 0.5% – 1.0%
• Iron (Fe): Balance

High molybdenum and nitrogen content significantly improve pitting and crevice corrosion resistance.

Key Features of SMO 254 Sheets & Plates

• Outstanding resistance to pitting and crevice corrosion
• Excellent performance in seawater and chloride environments
• High strength and durability
• Resistance to stress corrosion cracking
• Good weldability and fabrication
• Superior performance compared to standard stainless steels
• Long service life in aggressive conditions

Mechanical Properties

SMO 254 provides strong mechanical performance:

• Tensile Strength: ~650 MPa
• Yield Strength: ~300 MPa
• Elongation: ~35%
• Hardness: Moderate

These properties ensure reliability under pressure and stress.

Physical Properties

• Density: ~8.0 g/cm³
• Melting Range: ~1320–1390°C
• Modulus of Elasticity: ~200 GPa
• Thermal Conductivity: ~14 W/m•K
• Thermal Expansion: Moderate

Corrosion Resistance

SMO 254 Sheets & Plates offer excellent resistance to:

• Chloride-induced pitting and crevice corrosion
• Seawater and brine solutions
• Acidic and oxidizing environments
• Stress corrosion cracking
• Industrial pollutants

This makes them highly suitable for marine and chemical processing industries.

Heat Treatment

SMO 254 is typically supplied in solution annealed condition.

Heat Treatment Process:

• Solution Annealing: ~1100–1150°C
• Rapid cooling

This enhances corrosion resistance and mechanical properties.

Weldability

SMO 254 offers good weldability with proper procedures.

Welding Methods:

• TIG (GTAW)
• MIG (GMAW)

Best Practices:

• Use low heat input
• Use suitable filler materials
• Maintain clean conditions
• Avoid contamination

Machinability

• Moderate machining difficulty
• Use carbide tools
• Maintain low cutting speeds
• Apply coolant

Standards & Specifications

SMO 254 Sheets & Plates are manufactured according to:

• ASTM A240 UNS S31254
• ASME SA240

These standards ensure global quality compliance and reliability.

Available Forms of SMO 254

We offer:

• Sheets
• Plates
• Coils
• Strips

Surface Finish Options:

• Hot Rolled (HR)
• Cold Rolled (CR)
• Pickled
• Polished

Sizes & Specifications

• Thickness: 0.5 mm to 100 mm
• Width: Up to 2000 mm
• Length: Custom sizes available

Applications of SMO 254 Sheets & Plates

SMO 254 is widely used in industries requiring extreme corrosion resistance.

• Marine Industry Used in seawater piping and offshore structures.
• Chemical Processing Used in handling aggressive chemicals and acids.
• Desalination Plants Ideal for saltwater treatment systems.
• Oil & Gas Industry Used in offshore and corrosive environments.
• Power Plants Used in heat exchangers and cooling systems.

Quality Testing & Inspection

Each product undergoes strict quality checks:

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface defect testing
• Positive Material Identification (PMI)

Mill Test Certificates (MTC) are provided.

Packaging & Delivery

• Export-grade wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely worldwide delivery

Why Choose Virami Steel Hub?

• Trusted SMO 254 supplier in Mumbai
• Extensive inventory and ready stock
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

SMO 254 Sheets & Plates (UNS S31254) are a premium choice for industries requiring exceptional corrosion resistance in chloride-rich and aggressive environments. Their strength, durability, and superior performance make them ideal for marine, chemical, and offshore applications.

Virami Steel Hub delivers high-quality SMO 254 products that ensure long-term performance, reliability, and efficiency.
