SMO 254 (UNS S31254 / F44) Pipe Fittings – Manufacturer, Supplier & Exporter in Mumbai, India

What are SMO 254 Pipe Fittings?

SMO 254 (UNS S31254), also known as F44, is a high-alloy austenitic stainless steel developed for use in aggressive chloride-containing environments.

This alloy offers:

• Exceptional resistance to pitting and crevice corrosion
• High resistance to chloride stress corrosion cracking
• Excellent strength and durability

The high content of chromium, molybdenum, and nitrogen significantly enhances corrosion resistance, making SMO 254 superior to standard stainless steels.

Key Features of SMO 254 Pipe Fittings

• Outstanding resistance to pitting and crevice corrosion
• Excellent resistance to chloride stress corrosion cracking
• High strength and durability
• Superior performance in seawater and marine environments
• Good weldability and fabrication properties
• Long service life in harsh conditions

Chemical Composition (%)

Typical composition includes:

• Chromium (Cr): 19.5 – 20.5%
• Nickel (Ni): 17.5 – 18.5%
• Molybdenum (Mo): 6.0 – 6.5%
• Nitrogen (N): 0.18 – 0.22%
• Carbon (C): ≤ 0.02%
• Manganese (Mn): ≤ 1%
• Silicon (Si): ≤ 0.8%
• Phosphorus (P): ≤ 0.03%
• Sulfur (S): ≤ 0.01%

Role of Alloying Elements

• Chromium: Improves corrosion resistance
• Nickel: Enhances toughness and ductility
• Molybdenum: Provides excellent resistance to pitting
• Nitrogen: Increases strength and corrosion resistance

Mechanical Properties

Nickel 200

• Tensile Strength: ≥ 650 MPa
• Yield Strength: ≥ 300 MPa
• Elongation: ≥ 35%
• Hardness: ~210 HB max
• Density: 8.0 g/cm³

Physical Properties

• Melting Range: 1320 – 1390°C
• Modulus of Elasticity: 195 GPa
• Thermal Conductivity: 14 W/m·K
• Electrical Resistivity: 0.85 µΩ·m
• Thermal Expansion: 16.5 µm/m°C

Corrosion Resistance

SMO 254 pipe fittings provide excellent resistance to:

• Seawater and marine environments
• Chloride-rich solutions
• Pitting and crevice corrosion
• Acidic and chemical environments
• Industrial brine and desalination systems

Heat Treatment

SMO 254 is typically solution annealed:

Solution Annealing:

• Temperature:1100 – 1150°C
• Rapid cooling

This ensures optimal corrosion resistance and mechanical properties.

Weldability

SMO 254 pipe fittings offer good weldability:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Welding Recommendations

• Use matching filler materials
• Avoid excessive heat input
• Clean surfaces thoroughly
• Perform post-weld cleaning

Machinability

Due to high alloy content:

• Use carbide tools
• Maintain low cutting speeds
• Apply sufficient coolant
• Avoid work hardening

Standards & Specifications

• ASTM A403 / A182
• ASME SA403 / SA182
• UNS S31254
• EN 1.4547

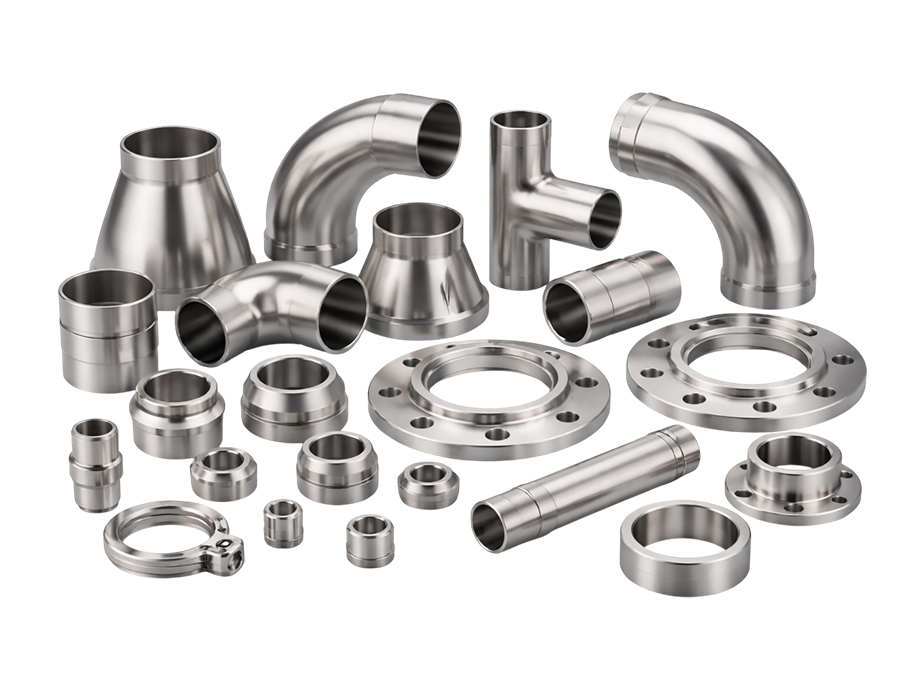

Available Types

• Elbows (45°, 90°, 180°)
• Tees (Equal & Reducing)
• Reducers
• Stub Ends
• Pipe Caps
• Cross Fittings

Available Sizes & Finishes

• Size Range: ½” to 48”
• Thickness: SCH 10 to SCH XXS

Surface Finish:

• Pickled
• Polished
• Sandblasted

Custom sizes available as per requirement.

Applications

Marine & Offshore Industry

• Seawater systems
• Offshore platforms

Desalination Plants

• Brine handling systems

Chemical Processing

• Acid handling equipment

Oil & Gas Industry

• Corrosion-resistant piping

Power Plants

• Heat exchangers
• Cooling systems

Quality Testing & Inspection

At Virami Steel Hub, all SMO 254 pipe fittings undergo strict quality checks:

• Chemical composition analysis
• Mechanical testing
• Dimensional inspection
• Surface quality checks
• PMI testing

Mill Test Certificates (MTC) and third-party inspections are available.

Packaging & Delivery

• Export-grade packaging
• Wooden boxes and pallets
• Proper labeling and traceability
• Safe and timely delivery worldwide

Why Choose Virami Steel Hub?

• Leading SMO 254 fittings manufacturer in Mumbai
• Large stock availability
• Competitive pricing
• Custom manufacturing options
• Compliance with international standards
• Strong global export network
• Reliable delivery and customer support

Conclusion

SMO 254 (UNS S31254 / F44) Pipe Fittings are high-performance super austenitic stainless steel components designed for use in extremely corrosive environments. With exceptional resistance to pitting, crevice corrosion, and chloride attack, they are ideal for marine, chemical, and desalination applications.

Virami Steel Hub supplies premium-quality SMO 254 pipe fittings manufactured to global standards, ensuring durability, reliability, and long service life.
