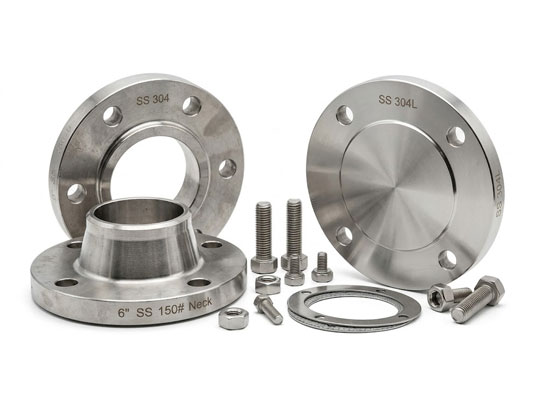

Stainless Steel 304 / 304L Flanges

What are Stainless Steel 304 / 304L Flanges?

Stainless Steel 304 / 304L flanges are essential piping components used to connect pipes, valves, pumps, and other equipment in a piping system.

• Connecting pipelines: Flanges provide a strong and secure connection between different sections of pipes.
• Easy maintenance: They allow easy disassembly for inspection, cleaning, or replacement.
• Leak-proof joints: When used with gaskets and bolts, they ensure tight sealing.
• System flexibility: They simplify installation and modifications in piping systems.

These flanges are made from austenitic stainless steel, known for its excellent corrosion resistance and mechanical properties.

Composition Highlights (Typical)

Stainless Steel 304:

• Chromium (18–20%): Provides corrosion and oxidation resistance.
• Nickel (8–10.5%): Enhances toughness and ductility.
• Carbon (≤ 0.08%): Improves strength but may affect weldability.
• Manganese (≤ 2%): Improves hot working properties.

Stainless Steel 304L:

• Lower Carbon (≤ 0.03%): Minimizes carbide precipitation during welding.
• Improved weldability: Reduces the risk of intergranular corrosion.
• Better for welded structures: Ideal for applications involving extensive welding.

Key Features of Stainless Steel 304 / 304L Flanges

• Excellent corrosion resistance: Performs well in atmospheric, chemical, and moist environments.
• Oxidation resistance: Maintains stability at elevated temperatures.
• High strength: Can withstand mechanical stress and pressure.
• Good weldability: Easily welded without compromising structural integrity.
• Formability: Can be shaped into various flange types without cracking.
• Intergranular corrosion resistance (304L): Prevents corrosion along grain boundaries after welding.
• Hygienic properties: Suitable for industries requiring clean and sterile environments.
• Long service life: Requires minimal maintenance over time.

Mechanical Properties

Stainless Steel 304:

• Tensile Strength (~515 MPa): Indicates the maximum stress the material can withstand before breaking.
• Yield Strength (≥ 205 MPa): Shows the stress at which the material begins to deform permanently.
• Elongation (≥ 40%): Reflects good ductility and flexibility.

Stainless Steel 304L:

• Slightly lower strength: Due to reduced carbon content.
• Better ductility: Makes it ideal for forming and welding.
• Higher elongation (~40%): Allows better shaping without fracture.

Physical Properties

• Density (~8.0 g/cm³): Provides a balance of strength and weight.
• Melting Range (1400–1450°C): Suitable for high-temperature applications.
• Modulus of Elasticity (~193 GPa): Indicates stiffness and resistance to deformation.
• Thermal Conductivity (~16 W/m•K): Moderate heat transfer capability.
• Thermal Expansion (~17.2 µm/m°C): Important for temperature variation handling.

Corrosion Resistance

Stainless Steel 304 / 304L flanges are highly resistant to:

• Atmospheric corrosion: Ideal for outdoor and humid environments.
• Mild acids and chemicals: Suitable for general chemical processing.
• Oxidizing environments: Performs well in oxygen-rich conditions.
• Food-grade environments: Safe for food and beverage applications.
• Freshwater exposure: Resistant to rusting in water systems.

304L Advantage: Its low carbon content prevents corrosion after welding, making it suitable for critical applications.

Heat Treatment

• Annealing (1010–1120°C): Improves ductility and corrosion resistance.
• Rapid cooling: Prevents carbide precipitation and maintains structure.

This process ensures optimal mechanical and corrosion-resistant properties.

Weldability

Stainless Steel 304 / 304L flanges can be welded using:

• TIG (GTAW): Provides clean and precise welds.
• MIG (GMAW): Suitable for faster welding processes.
• SMAW: Common for industrial applications.

Best Practices:

• Use 304L for welded structures
• Use compatible filler materials
• Avoid excessive heat input

Machinability

• Moderate machinability: Requires proper cutting conditions.
• Use sharp tools: Prevents material hardening.
• Low cutting speed: Reduces heat generation.
• Coolant application: Enhances tool life and finish quality.

Standards & Specifications

• ASTM A182: Standard for forged stainless steel flanges
• ASME SA182: Equivalent ASME specification
• ANSI B16.5: Dimensions and pressure ratings
• ANSI B16.47: Large diameter flanges
• ASTM A240: Material specification for stainless steel

These standards ensure quality, compatibility, and global acceptance.

Available Types of Stainless Steel Flanges

• Weld Neck Flanges: Designed for high-pressure applications with strong connections.
• Slip-On Flanges: Easy to install and cost-effective.
• Blind Flanges: Used to close pipe ends.
• Socket Weld Flanges: Suitable for small-diameter high-pressure systems.
• Threaded Flanges: Used where welding is not possible.
• Lap Joint Flanges: Ideal for systems requiring frequent dismantling.
• Orifice Flanges: Used for flow measurement systems.

Sizes & Specifications

• Size Range (½” to 48”): Suitable for small to large piping systems.
• Pressure Ratings (150# to 2500#): Supports various pressure requirements.
• Forged construction: Ensures strength and reliability.

Surface Finish:

• Pickled: Clean, corrosion-resistant surface
• Polished: Smooth and aesthetic finish
• Machined: Precision-finished surfaces

Applications of Stainless Steel 304 / 304L Flanges

• Food & Beverage Industry: Used in hygienic systems where cleanliness and corrosion resistance are essential.
• Chemical Industry: Suitable for handling mild chemicals and processing systems.
• Oil & Gas Industry: Used in low to moderate corrosive environments.
• Pharmaceutical Industry: Ensures contamination-free and sterile piping systems.
• Water Treatment Plants: Used in pipelines for clean water distribution.

Quality Testing & Inspection

Each flange undergoes strict testing:

• Chemical testing: Verifies material composition
• Mechanical testing: Ensures strength and durability
• Dimensional inspection: Confirms accuracy
• Surface testing: Detects defects
• PMI testing: Confirms material grade

Mill Test Certificates and third-party inspections are provided for assurance.

Packaging & Delivery

• Strong wooden export packaging
• Protective wrapping to prevent damage
• Proper labeling for traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Reliable manufacturer in Mumbai
• Wide inventory availability
• Competitive pricing
• Custom solutions as per requirement
• International quality standards
• Global export experience
• Strong customer support

Conclusion

Stainless Steel 304 / 304L Flanges are a reliable and versatile solution for various industrial applications. Their excellent corrosion resistance, strength, and ease of fabrication make them ideal for industries such as food processing, pharmaceuticals, chemical processing, and water treatment.

Virami Steel Hub ensures top-quality SS flanges that deliver durability, performance, and long-term value.
