Stainless Steel 309 / 310 Flanges

What are Stainless Steel 309 / 310 Flanges?

Stainless Steel 309 and 310 flanges are high-temperature resistant piping components used to:

• Connect piping systems: Ensure strong and leak-proof connections between pipes and equipment.
• Handle extreme temperatures: Suitable for applications involving continuous high heat.
• Allow easy maintenance: Enable easy dismantling for inspection and repairs.
• Support industrial systems: Used in furnaces, heat exchangers, and thermal processing units.

These flanges are made from austenitic stainless steel alloys known for their excellent heat resistance and oxidation resistance.

Composition Highlights (Typical)

Stainless Steel 309:

• Chromium (Cr): 22 – 24% → Enhances oxidation resistance
• Nickel (Ni): 12 – 15% → Improves strength and toughness
• Carbon (C): ≤ 0.20%
• Iron (Fe): Balance

Stainless Steel 310:

• Chromium (Cr): 24 – 26% → Superior high-temperature resistance
• Nickel (Ni): 19 – 22% → Excellent thermal stability
• Carbon (C): ≤ 0.25%
• Iron (Fe): Balance

Key Features of Stainless Steel 309 / 310 Flanges

• Excellent high-temperature resistance: Performs reliably in extreme heat conditions.
• Outstanding oxidation resistance: Protects against scaling at elevated temperatures.
• High strength and durability: Maintains structural integrity under stress.
• Thermal stability: Suitable for continuous and cyclic heating applications.
• Good corrosion resistance: Resistant to oxidation and mild chemical environments.
• Excellent fabrication properties: Easy to form and fabricate.
• Long service life: Ideal for harsh industrial environments.

Mechanical Properties

Stainless Steel 309:

• Tensile Strength: ~515 MPa → Withstands high stress
• Yield Strength: ≥ 205 MPa → Maintains shape under load
• Elongation: ≥ 40% → Good ductility

Stainless Steel 310:

• Tensile Strength: ~520 MPa
• Yield Strength: ≥ 210 MPa
• Elongation: ≥ 40%

These properties ensure durability and reliability in high-temperature applications.

Physical Properties

• Density: ~7.9 – 8.0 g/cm³ → Strong yet manageable weight
• Melting Range: 1400 – 1450°C → Suitable for extreme heat
• Modulus of Elasticity: ~200 GPa → High stiffness
• Thermal Conductivity: ~14 – 16 W/m•K → Moderate heat transfer
• Coefficient of Expansion: ~15.6 µm/m°C → Handles thermal expansion

Corrosion & Heat Resistance

Stainless Steel 309 / 310 flanges provide excellent resistance to:

• High-temperature oxidation: Ideal for furnace and heat applications
• Thermal cycling: Withstands repeated heating and cooling
• Scaling: Prevents surface degradation at high temperatures
• Mild chemical environments: Suitable for industrial gases and chemicals

310 Grade Advantage: Offers superior performance at higher temperatures compared to 309.

Heat Treatment

• Annealing: 1030 – 1150°C
• Rapid cooling (air or water quenching)

This process enhances ductility and maintains heat resistance properties.

Weldability

Stainless Steel 309 / 310 flanges can be welded using:

• TIG (GTAW) → High precision welding
• MIG (GMAW) → Faster welding process
• SMAW → Suitable for industrial use

Recommendations:

• Use matching filler materials
• Control heat input
• Maintain clean welding conditions

Machinability

• Moderate machinability due to high alloy content
• Use carbide cutting tools
• Maintain low cutting speeds
• Apply proper coolant to avoid overheating

Standards & Specifications

• ASTM A182 → Forged stainless steel flanges
• ASME SA182 → Equivalent standard
• ANSI B16.5 → Flange dimensions and ratings
• ANSI B16.47 → Large diameter flanges
• ASTM A240 → Material specifications

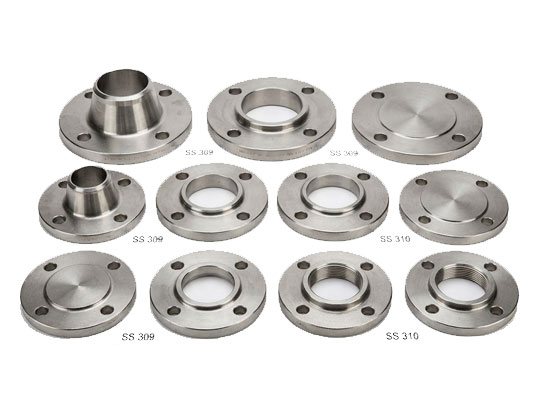

Available Types of Stainless Steel Flanges

• Weld Neck Flanges → High-pressure applications
• Slip-On Flanges → Easy installation
• Blind Flanges → Seal pipe ends
• Socket Weld Flanges → Small bore systems
• Threaded Flanges → Non-weld applications
• Lap Joint Flanges → Easy dismantling
• Orifice Flanges → Flow measurement

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
• Type: Forged.

Surface Finish:

• Pickled → Clean and corrosion-resistant
• Polished → Smooth surface finish
• Machined → Precision finishing

(Custom sizes available as per requirement)

Applications of Stainless Steel 309 / 310 Flanges

• Heat Treatment Industry: Used in furnaces, kilns, and heat exchangers.
• Power Generation: Suitable for boilers and high-temperature systems.
• Chemical Processing: Handles hot gases and chemicals.
• Petrochemical Industry: Used in high-temperature processing units.
• Cement & Thermal Plants: Performs in extreme heat conditions.

Quality Testing & Inspection

All flanges undergo strict quality checks:

• Chemical composition testing → Ensures correct material grade
• Mechanical testing → Verifies strength and durability
• Dimensional inspection → Confirms accuracy
• Surface testing → Detects defects
• PMI testing → Confirms material identity

Mill Test Certificates (MTC) and third-party inspections are provided.

Packaging & Delivery

• Export-quality wooden packaging
• Protective wrapping to prevent damage
• Proper labeling for traceability
• Safe and timely global shipping

Why Choose Virami Steel Hub?

• Trusted stainless steel flange manufacturer in Mumbai
• Large stock availability
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

Stainless Steel 309 / 310 Flanges are ideal for high-temperature and oxidation-resistant applications. Their superior thermal stability, strength, and durability make them essential in industries such as power generation, heat treatment, and petrochemicals.

Virami Steel Hub delivers premium-quality SS 309 / 310 flanges that meet global standards, ensuring reliable performance even in the most demanding environments.
