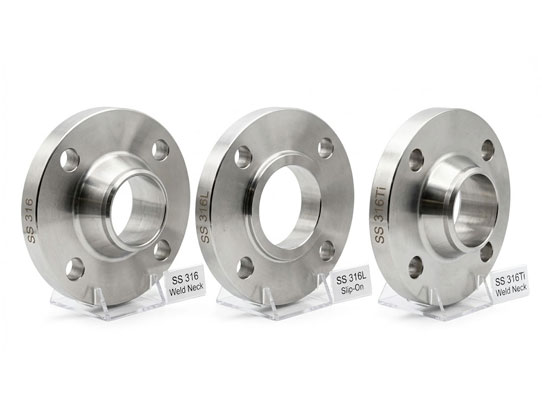

Stainless Steel 316 / 316L / 316Ti Flanges

What are Stainless Steel 316 / 316L / 316Ti Flanges?

Stainless Steel 316, 316L, and 316Ti flanges are piping components used to:

• Connect piping systems Provide secure and leak-proof joints between pipes and equipment.
• Handle corrosive environments Ideal for chloride-rich and chemical applications.
• Allow maintenance access Enable easy disassembly for cleaning and inspection.
• Enhance system reliability Ensure strong and durable piping connections.

These flanges are made from molybdenum-bearing austenitic stainless steel, offering enhanced corrosion resistance compared to 304 grades.

Composition Highlights (Typical)

Stainless Steel 316:

• Chromium (Cr): 16 – 18% → Corrosion resistance
• Nickel (Ni): 10 – 14% → Toughness and strength
• Molybdenum (Mo): 2 – 3% → Resistance to chlorides
• Carbon (C): ≤ 0.08%

Stainless Steel 316L:

• Lower Carbon (≤ 0.03%) → Prevents carbide precipitation
• Better weldability → Ideal for welded structures
• Improved corrosion resistance after welding

Stainless Steel 316Ti:

• Titanium (Ti) added → Stabilizes the structure
• Prevents intergranular corrosion
• Suitable for high-temperature applications

Key Features of Stainless Steel 316 / 316L / 316Ti Flanges

• Excellent corrosion resistance: Performs well in marine and chemical environments
• Superior resistance to chlorides: Prevents pitting and crevice corrosion
• High strength and durability: Suitable for heavy-duty applications
• Good weldability (316L): Ideal for welded piping systems
• Thermal stability (316Ti): Performs well at elevated temperatures
• Oxidation resistance: Maintains performance in harsh conditions
• Long service life: Reduces maintenance and replacement costs

Mechanical Properties

Stainless Steel 316:

• Tensile Strength: ~515 MPa → High load-bearing capacity
• Yield Strength: ≥ 205 MPa → Resists deformation
• Elongation: ≥ 40% → Excellent ductility

Stainless Steel 316L:

• Slightly lower strength but better weldability
• Higher resistance to corrosion after welding

Stainless Steel 316Ti:

• Comparable strength to 316
• Enhanced stability at high temperatures

Physical Properties

• Density: ~8.0 g/cm³ → Strong and durable
• Melting Range: 1375 – 1400°C → Suitable for high temperatures
• Modulus of Elasticity: ~193 GPa → High stiffness
• Thermal Conductivity: ~16 W/m•K → Moderate heat transfer
• Coefficient of Expansion: ~16 µm/m°C → Handles temperature variation

Corrosion Resistance

Stainless Steel 316 series flanges offer excellent resistance to:

• Chloride environments: Ideal for marine and coastal applications
• Acids and chemicals: Suitable for chemical processing industries
• Pitting and crevice corrosion: Enhanced by molybdenum content
• Saltwater exposure: Highly resistant to seawater corrosion
• Industrial environments: Performs well in harsh conditions

316L Advantage: Prevents corrosion after welding
316Ti Advantage: Resists corrosion at elevated temperatures

Heat Treatment

• Annealing: 1010 – 1120°C
• Rapid cooling (water quenching)

This process enhances corrosion resistance and maintains ductility.

Weldability

SS 316 / 316L / 316Ti flanges can be welded using:

• TIG (GTAW) → Clean and precise welds
• MIG (GMAW) → Faster welding process
• SMAW → Common industrial method

Recommendations:

• Use 316L for welding applications
• Use compatible filler materials
• Avoid excessive heat input

Machinability

• Moderate machinability
• Use carbide tools for better performance
• Maintain low cutting speeds
• Apply sufficient coolant to reduce heat

Standards & Specifications

• ASTM A182
• ASME SA182
• ANSI B16.5
• ANSI B16.47
• ASTM A240

These standards ensure global acceptance and consistent quality.

Available Types of Stainless Steel Flanges

• Weld Neck Flanges → High-pressure systems
• Slip-On Flanges → Easy installation
• Blind Flanges → Pipe end closure
• Socket Weld Flanges → Small bore pipelines
• Threaded Flanges → Non-weld systems
• Lap Joint Flanges → Easy maintenance
• Orifice Flanges → Flow measurement

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
• Type: Forged.

Surface Finish:

• Pickled → Clean surface
• Polished → Smooth finish
• Machined → Precision engineered

(Custom sizes available as per requirement)

Applications of Stainless Steel 316 / 316L / 316Ti Flanges

• Marine Industry: Used in seawater systems and offshore structures.
• Chemical Industry: Handles corrosive chemicals and acids.
• Oil & Gas Industry: Suitable for harsh and corrosive environments.
• Pharmaceutical Industry: Ensures clean and contamination-free systems.
• Food Processing: Used in hygienic and corrosion-resistant piping systems.

Quality Testing & Inspection

All flanges undergo strict testing:

• Chemical analysis → Confirms composition
• Mechanical testing → Ensures strength
• Dimensional inspection → Checks accuracy
• Surface examination → Detects defects
• PMI testing → Verifies material grade

Mill Test Certificates and third-party inspections are provided.

Packaging & Delivery

• Export-quality wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global shipping

Why Choose Virami Steel Hub?

• Leading SS flange manufacturer in Mumbai
• Ready stock availability
• Competitive pricing
• Custom manufacturing solutions
• International standard compliance
• Strong export network
• Dedicated customer support

Conclusion

Stainless Steel 316 / 316L / 316Ti Flanges are ideal for applications requiring superior corrosion resistance, especially in chloride-rich and high-temperature environments. Their durability, strength, and reliability make them a preferred choice across industries such as marine, chemical, oil & gas, and pharmaceuticals.

Virami Steel Hub provides high-quality SS 316 series flanges that meet global standards, ensuring long-term performance and reliability.
