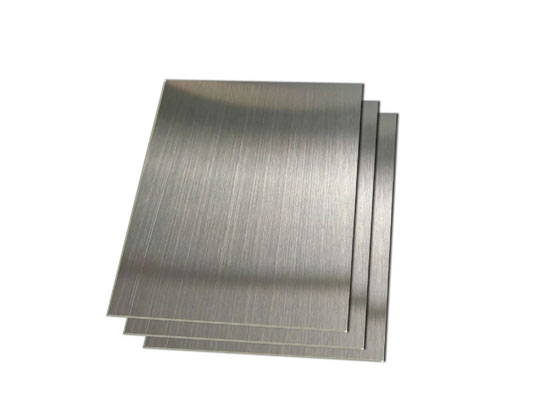

Stainless Steel 316 / 316L / 316Ti Sheets & Plates

What are Stainless Steel 316 / 316L / 316Ti Sheets & Plates?

Stainless Steel 316, 316L, and 316Ti sheets and plates are austenitic stainless steel flat products designed for applications requiring enhanced corrosion resistance and high-temperature performance.

• SS 316: Standard molybdenum-bearing stainless steel
• SS 316L: Low carbon version with improved weldability
• SS 316Ti: Titanium-stabilized version for high-temperature stability

These grades are widely used in industries exposed to chlorides, chemicals, and elevated temperatures.

Key Functions:

• Provide structural strength and durability
• Resist corrosion in aggressive environments
• Enable fabrication and welding
• Suitable for marine, chemical, and high-temperature applications

Chemical Composition of SS 316 / 316L / 316Ti

Stainless Steel 316:

• Chromium (Cr): 16% – 18%
• Nickel (Ni): 10% – 14%
• Molybdenum (Mo): 2% – 3%
• Carbon (C): ≤ 0.08%

Stainless Steel 316L:

• Similar to 316
• Carbon (C): ≤ 0.03% (Low carbon)

Stainless Steel 316Ti:

• Similar to 316
• Titanium (Ti): Added for stabilization

Molybdenum improves corrosion resistance, while titanium prevents carbide precipitation at high temperatures.

Difference Between SS 316, 316L, and 316Ti

Stainless Steel 310 offers several advantages:

• SS 316: General-purpose corrosion-resistant grade
• SS 316L: Best for welding applications
• SS 316Ti: Best for high-temperature environments

Key Features of SS 316 / 316L / 316Ti Sheets & Plates

• Excellent Corrosion Resistance (Especially in Chloride Environments)
• Superior Resistance to Pitting and Crevice Corrosion
• High Strength and Durability
• Excellent Weldability (316L)
• High-Temperature Stability (316Ti)
• Good Formability and Fabrication
• Hygienic and Easy to Clean
• Long Service Life with Low Maintenance

Mechanical Properties

SS 316:

• Tensile Strength: ~515 MPa
• Yield Strength: ~205 MPa

SS 316L:

• Slightly lower strength
• Higher ductility

SS 316Ti:

• Similar strength to 316
• Better high-temperature performance
• Elongation: ~40%
• Hardness: Moderate

Physical Properties

• Density: ~8.0 g/cm³
• Melting Range: ~1370–1400°C
• Modulus of Elasticity: ~193 GPa
• Thermal Conductivity: ~16 W/m•K
• Thermal Expansion: ~16 µm/m°C

Corrosion Resistance

SS 316 / 316L / 316Ti sheets and plates offer excellent resistance to:

• Chloride environments (marine and seawater)
• Pitting and crevice corrosion
• Chemical exposure
• Industrial pollutants
• Acidic and alkaline environments

316L Advantage: Better resistance after welding

316Ti Advantage: Stability at elevated temperatures

Heat Treatment

• Not hardenable by heat treatment
• Strength improved through cold working

Annealing Process:

• Temperature: ~1010–1120°C
• Rapid cooling

Welding Methods:

• TIG (GTAW)
• MIG (GMAW)
• SMAW

Best Practices:

• Use 316L for welded structures
• Use proper filler materials
• Avoid excessive heat input

Machinability

• Moderate machinability
• Use sharp tools
• Maintain controlled speeds
• Apply coolant

Standards & Specifications

SS 316 / 316L / 316Ti sheets and plates are manufactured according to:

• ASTM A240 – Stainless steel sheets & plates
• ASTM A666
• ASME SA240
• EN standards

These standards ensure quality and global compatibility.

Sizes & Specifications

• Thickness: 0.3 mm to 100 mm
• Width: Up to 2000 mm
• Length: Custom sizes available

Surface Finish Options:

• 2B Finish
• BA (Bright Annealed)
• Mirror Finish
• Matte Finish
• No.1 Finish

Applications of SS 316 / 316L / 316Ti Sheets & Plates

These grades are widely used across industries:

• Marine Industry Used in seawater and offshore applications.
• Chemical Processing Used in tanks, pipelines, and processing units.
• Pharmaceutical Industry Used in sterile environments.
• Food & Beverage Industry Used in hygienic systems.
• Oil & Gas Industry Used in corrosive and high-pressure environments.
• Power Plants Used in heat-resistant and high-temperature systems.

Quality Testing & Inspection

Each sheet and plate undergoes strict quality checks:

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface quality testing
• Positive Material Identification (PMI)

Mill Test Certificates (MTC) and third-party inspection reports are provided.

Packaging & Delivery

• Export-grade packaging
• Protective wrapping to prevent scratches
• Proper labeling and traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Trusted stainless steel supplier in Mumbai
• Wide range of grades and sizes
• Competitive pricing
• Custom solutions available
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

Stainless Steel 316 / 316L / 316Ti Sheets & Plates are high-performance materials designed for industries requiring superior corrosion resistance, durability, and reliability. Whether for welding applications (316L) or high-temperature environments (316Ti), these grades provide excellent performance across various industries.

With a strong focus on quality and precision, Virami Steel Hub delivers stainless steel sheets and plates that ensure long-term performance, efficiency, and value.
