Stainless Steel 316L Wires Manufacturer, Supplier & Exporter in Mumbai, India

Stainless Steel 316L Wires Manufacturer, Supplier & Exporter in Mumbai, India

Virami Steel Hub is a leading manufacturer, supplier, stockist, and exporter of Stainless Steel 316L Wires in Mumbai, India. We supply premium-quality SS 316L wires in various diameters, finishes, and specifications to meet the requirements of chemical, marine, pharmaceutical, food processing, and engineering industries. Our products are supplied across India and exported globally to the USA, Europe, the Middle East, Africa, and Southeast Asia.

Stainless Steel 316L is a low-carbon, molybdenum-bearing austenitic stainless steel known for its superior corrosion resistance, particularly in chloride and marine environments. Due to its enhanced resistance to pitting and crevice corrosion, SS 316L wires are widely used in aggressive industrial applications.

What Are Stainless Steel 316L Wires?

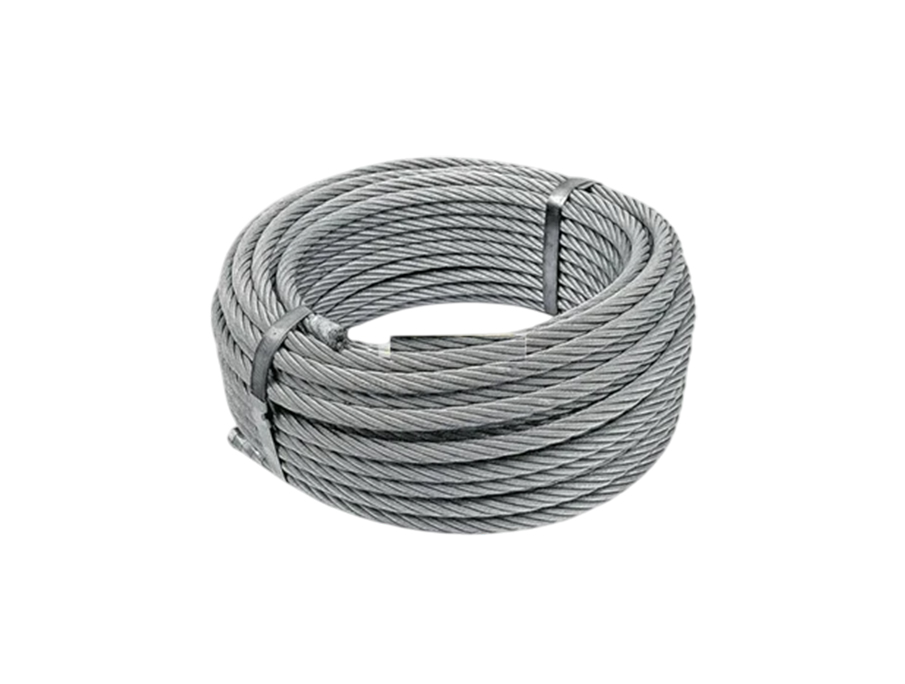

Stainless Steel 316L Wires are cold-drawn or annealed wire products manufactured from Grade 316L stainless steel. The "L" indicates low carbon content (maximum 0.03%), which minimizes carbide precipitation during welding and improves resistance to intergranular corrosion.

SS 316L wires offer:

  • Excellent corrosion resistance
  • Superior resistance to chlorides
  • Outstanding weldability
  • High strength and ductility
  • Good formability

These properties make SS 316L wires suitable for harsh and corrosive environments.

Key Features of Stainless Steel 316L Wires

  • Excellent resistance to pitting and crevice corrosion
  • Superior resistance to chloride environments
  • Low carbon content reduces risk of sensitization
  • Excellent weldability without post-weld heat treatment
  • High strength and durability
  • Good resistance to acids and industrial chemicals
  • Non-magnetic in annealed condition

These characteristics make SS 316L a preferred choice for marine and chemical applications.


Chemical Composition of Stainless Steel 316L

Element Composition (%)
Chromium (Cr) 16.0 – 18.0
Nickel (Ni) 10.0 – 14.0
Molybdenum (Mo) 2.0 – 3.0
Carbon (C) 0.03 max
Manganese (Mn) 2.0 max
Silicon (Si) 1.0 max
Phosphorus (P) 0.045 max
Sulfur (S) 0.03 max
Iron (Fe) Balance

Role of Key Elements

  • Chromium (Cr): Forms a passive oxide layer for corrosion resistance.
  • Nickel (Ni): Improves toughness and ductility.
  • Molybdenum (Mo): Enhances resistance to pitting and crevice corrosion.
  • Low Carbon (C): Prevents carbide precipitation and intergranular corrosion.

The addition of molybdenum significantly improves performance in chloride-rich environments.


Mechanical Properties of Stainless Steel 316L Wires

Stainless Steel 316L wires provide reliable mechanical performance:

  • Tensile Strength: 485 – 620 MPa
  • Yield Strength: 170 MPa (min)
  • Elongation: 40% (min)
  • Hardness: 217 HB (max in annealed condition)
  • Density: 8.0 g/cm³

Cold working increases tensile strength and hardness, making the wires suitable for high-strength applications.


Physical Properties of Stainless Steel 316L

  • Melting Range: 1375 – 1400°C
  • Modulus of Elasticity: 193 GPa
  • Thermal Conductivity: 14.6 W/m·K
  • Electrical Resistivity: 0.74 µΩ·m
  • Coefficient of Thermal Expansion: 16 µm/m°C

SS 316L wires maintain dimensional stability and structural integrity under varying temperature conditions.


Corrosion Resistance of Stainless Steel 316L Wires

Stainless Steel 316L provides excellent resistance to:

  • Marine and seawater environments
  • Chloride-rich environments
  • Pitting and crevice corrosion
  • Industrial acids
  • Chemical processing conditions

The molybdenum content significantly enhances resistance to localized corrosion compared to 304 and 304L.

It is widely used in offshore, coastal, and chemical industries due to its superior corrosion resistance.


Heat Treatment of Stainless Steel 316L Wires

Stainless Steel 316L cannot be hardened by heat treatment. It is typically supplied in annealed or cold-worked condition.

Annealing Process:

  • Heat to 1010 – 1120°C
  • Rapid cooling (water or air quenching)

Annealing restores ductility and relieves stresses caused by cold working.

Cold working increases strength and hardness but reduces ductility.


Machinability of Stainless Steel 316L Wires

SS 316L has moderate machinability.

  • Use sharp cutting tools
  • Maintain lower cutting speeds
  • Apply adequate coolant
  • Prevent work hardening

Although slightly more difficult to machine than 304, it offers superior corrosion resistance.


Weldability of Stainless Steel 316L Wires

Stainless Steel 316L offers excellent weldability.

  • Suitable for TIG (GTAW) and MIG (GMAW) welding
  • No preheating generally required
  • Post-weld heat treatment usually not necessary
  • Use compatible filler metals such as ER316L

Its low carbon content reduces the risk of sensitization in the heat-affected zone.


Available Sizes & Specifications

Stainless Steel 316L wires are manufactured according to international standards:

Standards:

  • ASTM A580 (Stainless Steel Wire)
  • ASTM A276
  • ASTM A479
  • ASME SA580

Size Range:

  • Wire Diameter: 0.1 mm to 25 mm
  • Coil Weight: 1 kg to 500 kg
  • Straight Lengths: As per customer requirement

Surface Finishes:

  • Bright drawn
  • Annealed
  • Polished
  • Cold drawn
  • Pickled

Custom sizes and finishes are available as per project specifications.


Applications of Stainless Steel 316L Wires

SS 316L wires are widely used in corrosive and marine environments.

Marine & Offshore Industry

  • Coastal structural components
  • Marine fasteners
  • Shipbuilding parts

Chemical & Petrochemical Industry

  • Process equipment
  • Heat exchangers
  • Storage tanks

Pharmaceutical & Food Industry

  • Hygienic processing equipment
  • Cleanroom components

Construction Industry

  • Architectural fittings
  • Reinforcement components

Medical Applications

  • Surgical instruments
  • Implant-grade components (specific grades required)

Its superior corrosion resistance makes it suitable for aggressive industrial environments.


Advantages of Stainless Steel 316L Wires

  • Superior corrosion resistance
  • Excellent resistance to chlorides
  • Outstanding weldability
  • High strength and durability
  • Long service life
  • Suitable for harsh environments
  • Low maintenance requirements

These benefits make SS 316L wires one of the most widely used corrosion-resistant stainless steel grades.


Quality Testing & Inspection

At Virami Steel Hub, all Stainless Steel 316L wires undergo strict quality checks:

  • Chemical composition analysis
  • Mechanical testing
  • Tensile and hardness testing
  • Surface inspection
  • Dimensional verification
  • Positive Material Identification (PMI)

Mill Test Certificates (MTC) are provided as per ASTM and ASME standards. Third-party inspection is available upon request.


Packaging & Delivery

To ensure safe transport and storage, SS 316L wires are:

  • Packed in moisture-resistant wrapping
  • Supplied in coils or straight lengths
  • Secured in wooden boxes or pallets
  • Properly labeled with batch details

We ensure prompt dispatch and reliable worldwide shipping.


Why Choose Virami Steel Hub for Stainless Steel 316L Wires?

  • Trusted manufacturer and exporter in Mumbai, India
  • Extensive ready-stock inventory
  • Competitive pricing
  • Custom sizes and finishes available
  • Compliance with international standards
  • Fast and secure global delivery

Our commitment to quality, precision, and customer satisfaction makes us a preferred supplier worldwide.


Conclusion

Stainless Steel 316L Wires are low-carbon, molybdenum-bearing austenitic stainless steel products offering excellent resistance to pitting, crevice corrosion, and chloride-rich environments. With superior corrosion resistance, outstanding weldability, and strong mechanical properties, SS 316L wires are widely used in marine, chemical, pharmaceutical, and industrial applications.

Virami Steel Hub supplies certified Stainless Steel 316L wires in various sizes and specifications, ensuring durability, reliability, and long-term performance in demanding industrial environments worldwide.
