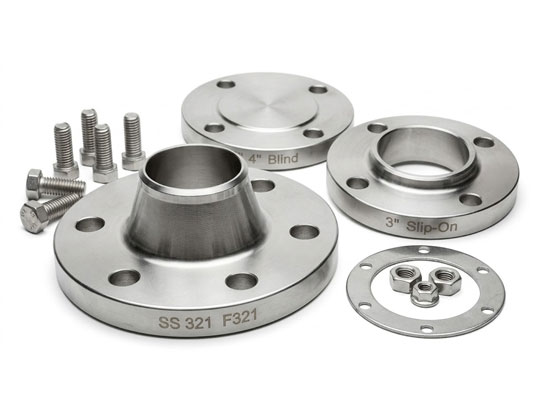

Stainless Steel 321 Flanges

What are Stainless Steel 321 Flanges?

Stainless Steel 321 flanges are piping components used to:

• Connect piping systems: Provide secure and leak-proof connections between pipes and equipment
• Withstand high temperatures: Ideal for applications involving continuous and cyclic heating
• Prevent corrosion: Specifically designed to resist intergranular corrosion
• Allow easy maintenance: Enable disassembly for inspection and servicing

These flanges are made from titanium-stabilized austenitic stainless steel, which prevents carbide precipitation during welding and high-temperature exposure.

Composition Highlights (Typical)

Stainless Steel 321:

• Chromium (Cr): 17 – 19% → Provides corrosion resistance
• Nickel (Ni): 9 – 12% → Enhances toughness and ductility
• Titanium (Ti): ≥ 5 × (Carbon %) → Stabilizes the structure
• Carbon (C): ≤ 0.08%
• Iron (Fe): Balance

Key Advantage: Titanium binds with carbon, preventing chromium carbide formation and improving resistance to intergranular corrosion.

Key Features of Stainless Steel 321 Flanges

• Excellent high-temperature resistance: Suitable for continuous service up to ~900°C
• Resistance to intergranular corrosion: Prevents corrosion after welding
• Good oxidation resistance: Performs well in elevated temperatures
• High strength and durability: Maintains integrity under stress
• Thermal stability: Ideal for cyclic heating conditions
• Good weldability: Does not require post-weld annealing
• Long service life: Reliable in harsh environments

Mechanical Properties

Stainless Steel 321:

• Tensile Strength: ~515 MPa → High load-bearing capability
• Yield Strength: ≥ 205 MPa → Resists deformation under stress
• Elongation: ≥ 40% → Excellent ductility and flexibility

These properties make SS 321 flanges suitable for demanding industrial applications.

Physical Properties

• Density: ~8.0 g/cm³ → Strong and durable material
• Melting Range: 1400 – 1450°C → Suitable for high heat
• Modulus of Elasticity: ~193 GPa → High stiffness
• Thermal Conductivity: ~16 W/m•K → Moderate heat transfer
• Coefficient of Expansion: ~16.5 µm/m°C → Handles thermal expansion

Corrosion Resistance

Stainless Steel 321 flanges offer excellent resistance to:

• Intergranular corrosion: Especially after welding
• High-temperature oxidation: Suitable for furnace applications
• Thermal cycling: Handles repeated heating and cooling
• Mild chemical environments: Performs well in industrial conditions

Heat Treatment

• Annealing: 950 – 1120°C
• Rapid cooling (air or water quenching)

This process enhances corrosion resistance and restores ductility.

Weldability

SS 321 flanges can be welded using:

• TIG (GTAW) → High precision welding
• MIG (GMAW) → Efficient and fast
• SMAW → Suitable for industrial use

Recommendations:

• No post-weld annealing required
• Use appropriate filler materials
• Maintain controlled heat input

Machinability

• Moderate machinability
• Use carbide tools for better cutting performance
• Maintain low speeds to reduce heat
• Use coolant to prevent work hardening

Standards & Specifications

• ASTM A182
• ASME SA182
• ANSI B16.5
• ANSI B16.47
• ASTM A240

These standards ensure consistent quality and global acceptance.

Available Types of Stainless Steel Flanges

• Weld Neck Flanges → High-pressure applications
• Slip-On Flanges → Easy installation
• Blind Flanges → Pipe end closure
• Socket Weld Flanges → Small pipelines
• Threaded Flanges → Non-weld applications
• Lap Joint Flanges → Easy dismantling
• Orifice Flanges → Flow measurement

Sizes & Specifications

• Size Range: ½ inch to 48 inches
• Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
• Type: Forged

Surface Finish:

• Pickled → Clean surface
• Polished → Smooth finish
• Machined → Precision finished

(Custom sizes available as per requirement)

Applications of Stainless Steel 321 Flanges

• Aerospace Industry: Used in exhaust systems and high-temperature components.
• Heat Treatment Industry: Applied in furnaces and thermal processing equipment.
• Chemical Processing: Handles high-temperature chemicals.
• Oil & Gas Industry: Used in high-heat processing systems.
• Power Generation: Suitable for boilers and heat exchangers.

Quality Testing & Inspection

All flanges undergo strict quality checks:

• Chemical composition analysis → Ensures material accuracy
• Mechanical testing → Verifies strength and durability
• Dimensional inspection → Confirms precision
• Surface examination → Detects defects
• PMI testing → Confirms material grade

Mill Test Certificates (MTC) and third-party inspections are provided.

Packaging & Delivery

• Export-quality wooden packaging
• Protective wrapping
• Proper labeling and traceability
• Safe and timely global shipping

Why Choose Virami Steel Hub?

• Trusted SS flange manufacturer in Mumbai
• Ready stock availability
• Competitive pricing
• Custom manufacturing solutions
• Compliance with international standards
• Strong export network
• Dedicated customer support

Conclusion

Stainless Steel 321 Flanges are an excellent choice for high-temperature and corrosion-resistant applications. Their titanium stabilization provides superior resistance to intergranular corrosion, making them ideal for industries such as aerospace, heat treatment, chemical processing, and power generation.

Virami Steel Hub delivers high-quality SS 321 flanges that meet global standards, ensuring durability, performance, and long-term reliability.
