Stainless Steel Nitronic 50 Sheets & Plates

Stainless Steel Nitronic 50 Sheets & Plates Manufacturer, Supplier & Exporter in Mumbai, India

Virami Steel Hub is a trusted manufacturer, supplier, stockist, and exporter of premium-quality Stainless Steel Nitronic 50 Sheets & Plates in Mumbai, India. We specialize in offering high-performance stainless steel products known for their exceptional strength, superior corrosion resistance, and excellent performance in extreme environments.

Our Nitronic 50 sheets and plates are manufactured using top-grade raw materials and advanced processing techniques to ensure precise dimensions, excellent surface finish, uniform mechanical properties, and long service life. We serve both domestic and international markets, including the USA, Europe, the Middle East, Africa, and Southeast Asia.

With a strong focus on quality and reliability, Virami Steel Hub delivers stainless steel solutions for demanding industrial applications.

What are Stainless Steel Nitronic 50 Sheets & Plates?

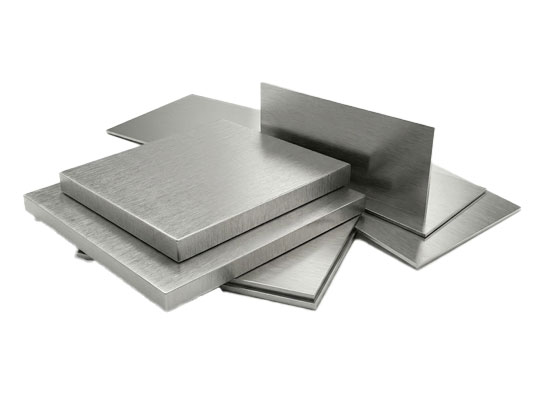

Stainless Steel Nitronic 50 sheets and plates (also known as UNS S20910 / XM-19) are high-strength austenitic stainless steel flat products designed to offer a unique combination of high strength, excellent corrosion resistance, and good ductility.

Nitronic 50 is strengthened by nitrogen and manganese, making it significantly stronger than conventional stainless steels like 304 and 316 while maintaining excellent corrosion resistance.

Key Functions:

  • Provide high strength and durability
  • Resist corrosion in aggressive environments
  • Maintain toughness across a wide temperature range
  • Enable fabrication and machining

Chemical Composition of Stainless Steel Nitronic 50

Nitronic 50 has a carefully balanced composition that enhances strength and corrosion resistance.

Typical Composition:

  • Chromium (Cr): 20.5% – 23.5%
  • Nickel (Ni): 11.5% – 13.5%
  • Manganese (Mn): 4% – 6%
  • Molybdenum (Mo): 1.5% – 3%
  • Nitrogen (N): 0.20% – 0.40%
  • Carbon (C): ≤ 0.06%
  • Iron (Fe): Balance

Nitrogen significantly increases yield strength and improves resistance to pitting corrosion.


Key Features of Nitronic 50 Sheets & Plates

Stainless Steel Nitronic 50 offers several advantages:

  • High Strength (Nearly Double of 304/316)
  • Excellent Corrosion Resistance
  • Superior Resistance to Pitting and Crevice Corrosion
  • Good Stress Corrosion Cracking Resistance
  • Outstanding Toughness at Low Temperatures
  • Good Weldability and Fabrication
  • High Fatigue Resistance
  • Long Service Life in Harsh Conditions

Mechanical Properties

Nitronic 50 provides excellent mechanical performance:

  • Tensile Strength: ~690–860 MPa
  • Yield Strength: ~380–550 MPa
  • Elongation: ~35%
  • Hardness: Moderate to high

These properties make it ideal for high-load and high-stress applications.


Physical Properties

  • Density: ~7.9 g/cm³
  • Melting Range: ~1370–1400°C
  • Modulus of Elasticity: ~200 GPa
  • Thermal Conductivity: ~14 W/m•K
  • Thermal Expansion: Moderate

Corrosion Resistance

Nitronic 50 sheets and plates offer excellent resistance to:

  • Chloride environments
  • Pitting and crevice corrosion
  • Stress corrosion cracking
  • Marine environments
  • Chemical exposure

It performs better than SS 316 in many corrosive conditions.


Heat Treatment

  • Not hardenable by conventional heat treatment
  • Strength enhanced through cold working

Annealing Process:

  • Temperature: ~1065–1120°C
  • Rapid cooling

Weldability

Nitronic 50 offers good weldability.

Welding Methods:

  • TIG (GTAW)
  • MIG (GMAW)
  • SMAW

Best Practices:

  • Use compatible filler materials
  • Maintain clean surfaces
  • Control heat input

Machinability

  • Moderate machinability
  • Use sharp tools
  • Maintain proper speeds
  • Apply coolant

Standards & Specifications

Nitronic 50 sheets and plates are manufactured according to:

  • ASTM A240 – Stainless steel sheets & plates
  • ASTM A479
  • ASME SA240
  • UNS S20910

These standards ensure quality and global acceptance.


Sizes & Specifications

  • Thickness: 0.5 mm to 100 mm
  • Width: Up to 2000 mm
  • Length: Custom sizes available

Surface Finish Options:

  • 2B Finish
  • BA (Bright Annealed)
  • Mirror Finish
  • Matte Finish
  • No.1 Finish

Applications of Stainless Steel Nitronic 50 Sheets & Plates

Nitronic 50 sheets and plates are widely used in industries requiring high strength and corrosion resistance.

  • Marine Industry Used in seawater systems and offshore structures.
  • Oil & Gas Industry Used in high-pressure and corrosive environments.
  • Chemical Processing Used in aggressive chemical handling systems.
  • Power Plants Used in high-performance components.
  • Aerospace Industry Used in structural and critical applications.

Quality Testing & Inspection

Each sheet and plate undergoes strict quality control:

  • Chemical composition testing
  • Mechanical testing
  • Dimensional inspection
  • Surface quality testing
  • Positive Material Identification (PMI)

Mill Test Certificates (MTC) and third-party inspection reports are provided.


Packaging & Delivery

  • Export-grade packaging
  • Protective wrapping to prevent damage
  • Proper labeling and traceability
  • Safe and timely global delivery

Why Choose Virami Steel Hub?

  • Trusted stainless steel supplier in Mumbai
  • Wide range of advanced stainless steel grades
  • Competitive pricing
  • Custom solutions available
  • Compliance with international standards
  • Strong export network
  • Dedicated customer support

Conclusion

Stainless Steel Nitronic 50 Sheets & Plates (UNS S20910 / XM-19) are a high-performance solution for industries requiring exceptional strength, corrosion resistance, and durability. Their superior mechanical properties and ability to perform in harsh environments make them ideal for critical applications.

With a strong focus on quality and performance, Virami Steel Hub delivers Nitronic 50 sheets and plates that ensure long-term reliability, efficiency, and value.


FAQs – Stainless Steel Nitronic 50 Sheets & Plates

(1)What is Nitronic 50 used for?

Nitronic 50 is used in marine, oil & gas, chemical processing, and aerospace industries.

Yes, Nitronic 50 offers significantly higher strength and better corrosion resistance than SS 316.

There is no difference; both refer to the same material (UNS S20910).

Yes, it provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking.

Yes, it has good weldability using standard welding methods.

Marine, oil & gas, aerospace, and chemical industries widely use them.
