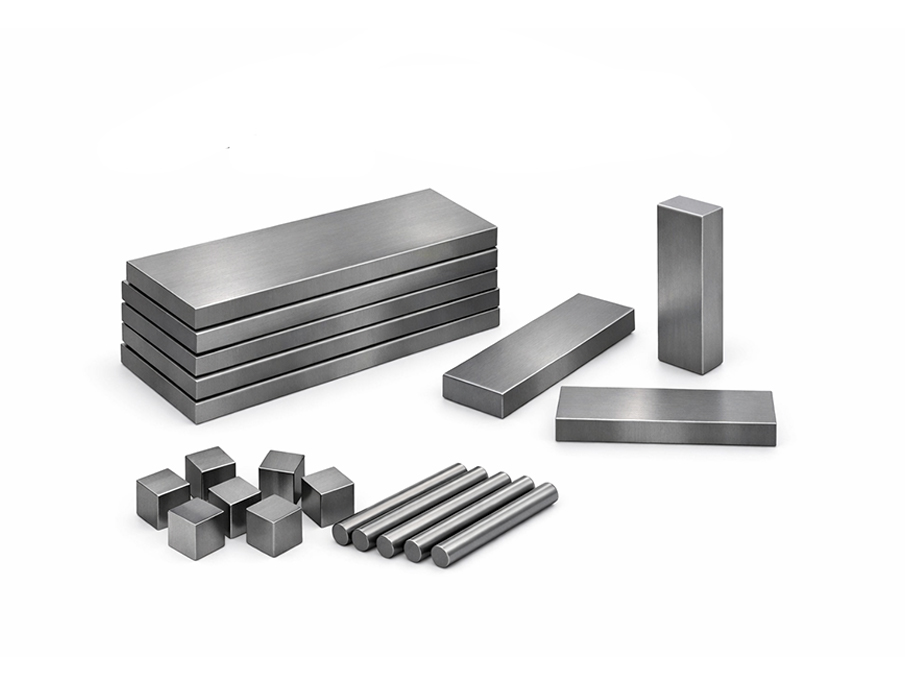

Tantalum Bars

What Are Tantalum Bars?

Tantalum Bars are solid cylindrical rods made from high-purity tantalum metal. They are recognized for their exceptional corrosion resistance, ductility, and high melting point.

Key features of tantalum bars:

• Exceptional resistance to corrosion in acids such as hydrochloric, sulfuric, and nitric acid
• High melting point of 2996°C (5425°F), making it ideal for high-temperature applications
• Excellent ductility and formability
• High biocompatibility, suitable for medical implants
• Outstanding thermal and electrical conductivity
• Non-reactive with most chemical and industrial environments

These features make tantalum bars widely used in chemical vessels, heat exchangers, electronic components, and medical devices.

Key Features of Tantalum Bars

• Unmatched corrosion resistance against nearly all acids and aggressive chemical environments
• High mechanical strength at room and elevated temperatures
• Excellent ductility and formability for machining and fabrication
• High melting point and thermal stability
• High electrical and thermal conductivity
• Biocompatible for medical and surgical applications
• Non-reactive and chemically inert

These characteristics make tantalum bars suitable for chemical processing, aerospace, nuclear, medical, and electronics industries.

Chemical Composition of Tantalum Bars

• Tantalum (Ta): 99.95% min
• Iron (Fe): ≤ 0.03%
• Tungsten (W): ≤ 0.05%
• Oxygen (O): ≤ 0.05%
• Nitrogen (N): ≤ 0.03%
• Carbon (C): ≤ 0.02%
• Hydrogen (H): ≤ 0.01%

Role of Purity and Alloying

• High-purity tantalum: Provides excellent corrosion resistance and thermal stability
• Trace elements: Minimized to maintain ductility, thermal conductivity, and chemical inertness

High-purity tantalum ensures superior performance in aggressive chemical and high-temperature applications.

Mechanical Properties of Tantalum Bars

Tantalum bars offer excellent mechanical properties, ensuring durability under demanding conditions:

• Tensile Strength: 200 – 240 MPa
• Yield Strength: 140 – 180 MPa
• Elongation: 20 – 30%
• Hardness (HV): 90 – 120
• Density: 16.65 g/cm³

These properties make tantalum bars suitable for structural components, chemical equipment, and medical implants where strength and corrosion resistance are critical.

Physical Properties of Tantalum Bars

• Melting Point: 2996°C (5425°F)
• Boiling Point: 5458°C (9860°F)
• Thermal Conductivity: 57 W/m·K
• Electrical Resistivity: 13.0 µΩ·cm
• Coefficient of Thermal Expansion: 6.5 µm/m°C
• Modulus of Elasticity: 186 GPa

Tantalum’s high melting point, density, and thermal stability make it ideal for high-temperature reactors, electronic components, and aerospace applications.

Heat Treatment of Tantalum Bars

Tantalum bars are generally supplied in annealed condition, ensuring ductility and machinability.

Annealing Process

• Heat to 1200 – 1400°C in vacuum or inert atmosphere
• Slowly cooled to prevent oxidation
• Relieves internal stresses and restores ductility

Proper heat treatment ensures mechanical integrity, corrosion resistance, and formability.

Machinability of Tantalum Bars

Tantalum is ductile and soft, but requires care during machining due to its high density and work-hardening tendency:

Step 1: Solution Annealing

• Use sharp carbide or high-speed steel tools
• Employ moderate cutting speeds and sufficient coolant
• Suitable for turning, milling, drilling, and precision machining
• Can be welded using electron beam, TIG, or laser welding

With proper machining, high-precision chemical and electronic components can be produced.

Corrosion Resistance of Tantalum Bars

• Resistant to hydrochloric acid, sulfuric acid, nitric acid, and aqua regia
• Non-reactive to chlorides, alkalis, and most organic acids
• Performs well in high-temperature chemical environments
• Ideal for heat exchangers, chemical tanks, and reaction vessels

Tantalum bars provide long-term durability and performance in the harshest chemical conditions.

Weldability of Tantalum Bars

• Tantalum can be welded using TIG, electron beam, or laser welding
• Requires inert gas shielding (argon or helium) to prevent oxidation
• Excellent weldability with minimal impact on corrosion resistance
• Used for chemical and medical applications where leak-proof joints are critical

Available Sizes & Specifications

Tantalum Bars are supplied in:

Standards:

• ASTM B365 / B668
• ISO 5832-5

Size Range:

• Diameter: 6 mm – 200 mm
• Length: 1m, 2m, 3m, or custom lengths
• Tolerances: As per ASTM / ISO standards

Surface Finish:

• Hot Rolled / Annealed
• Polished / Bright
• Centerless Ground

Applications of Tantalum Bars

Tantalum bars are used across multiple high-performance industries:

Chemical Processing

• Chemical reaction vessels, heat exchangers, and condensers
• Acid tanks and piping
• Electrolytic equipment for chlorine and other reactive chemicals

Electronics & Semiconductor

• Capacitors and high-frequency components
• Corrosion-resistant electrical contacts
• Semiconductor manufacturing equipment

Aerospace & Defense

• High-temperature components in jet engines
• Rocket nozzles and structural alloys
• Corrosion-resistant aerospace fasteners

Medical & Biomedical

• Surgical implants and prosthetics
• Biocompatible devices for long-term implantation

Nuclear & Energy

• Reactor components and fuel handling equipment
• High-temperature, corrosion-resistant piping

Advantages of Tantalum Bars

• Exceptional corrosion resistance to acids and aggressive chemicals
• High melting point for high-temperature applications
• Excellent ductility, machinability, and weldability
• Biocompatible for medical applications
• Reliable long-term performance in industrial, chemical, and aerospace applications
• Dense, strong, and thermally stable for critical engineering uses

Quality Testing & Inspection

All tantalum bars undergo:

• Chemical composition verification
• Mechanical property testing
• Dimensional and surface inspection
• Hardness and ductility testing

Mill Test Certificates (MTC) are provided per ASTM / ISO standards. Third-party inspection is available upon request.

Why Choose Virami Steel Hub for Tantalum Bars?

• Trusted tantalum bar manufacturer and supplier in Mumbai, India
• High-quality, high-purity tantalum for industrial, chemical, and medical applications
• Custom sizes, lengths, and surface finishes available
• Competitive pricing with global delivery
• Certified quality assurance and MTC
• Expertise in chemical, electronics, aerospace, nuclear, and medical industries

Conclusion

Tantalum Bars are premium high-purity refractory metal bars offering exceptional corrosion resistance, high melting point, and excellent ductility. Ideal for chemical processing, aerospace, electronics, nuclear, and medical applications, tantalum bars ensure long-term durability, reliability, and superior performance.

Virami Steel Hub supplies certified Tantalum Bars with customizable sizes, lengths, and surface finishes, making them the preferred choice for critical industrial, chemical, and high-performance engineering applications.
