Titanium Grade 5 Flanges

What are Titanium Grade 5 Flanges?

Titanium Grade 5 flanges are high-strength piping components made from Ti-6Al-4V alloy, one of the most widely used titanium alloys in the world. These flanges are used to connect pipes, valves, pumps, and other equipment in systems where high strength, corrosion resistance, and temperature performance are critical.

Compared to commercially pure titanium grades, Grade 5 offers significantly higher strength while maintaining good corrosion resistance and moderate ductility.

Key Functions of Titanium Grade 5 Flanges:

• Provide strong and leak-proof pipe connections
• Enable easy assembly and disassembly
• Withstand high pressure and temperature conditions
• Improve system reliability and performance

These flanges are ideal for demanding applications such as aerospace, chemical processing, and marine environments.

Chemical Composition of Titanium Grade 5 (Ti-6Al-4V)

Titanium Grade 5 is an alloy consisting of titanium combined with aluminum and vanadium, which significantly enhance its mechanical properties.

Typical Composition:

• Titanium (Ti): Balance
• Aluminum (Al): 5.5% – 6.75%
• Vanadium (V): 3.5% – 4.5%
• Iron (Fe): ≤ 0.40%
• Oxygen (O): ≤ 0.20%

Aluminum improves strength and reduces weight, while vanadium enhances toughness and fatigue resistance.

Key Features of Titanium Grade 5 Flanges

Titanium Grade 5 flanges offer a unique combination of properties that make them suitable for high-performance applications:

• High Strength: Nearly twice the strength of commercially pure titanium
• Excellent Corrosion Resistance: Performs well in marine and chemical environments
• Lightweight: About 40% lighter than steel
• Superior Fatigue Resistance: Ideal for cyclic loading conditions
• Good Heat Resistance: Maintains strength at elevated temperatures
• Excellent Strength-to-Weight Ratio: Preferred in aerospace applications
• Non-Magnetic Properties: Suitable for specialized environments
• Long Service Life: Reduces maintenance and replacement costs

Mechanical Properties

Titanium Grade 5 offers superior mechanical strength compared to other titanium grades:

• Tensile Strength: ~895 MPa
• Yield Strength: ~830 MPa
• Elongation: ~10–15%
• Hardness: Higher than commercially pure titanium

These properties make it suitable for high-pressure and high-stress applications.

Physical Properties

At Virami Steel Hub, every Titanium Grade 5 flange undergoes rigorous quality checks to ensure superior performance:

• Density: ~4.43 g/cm³
• Melting Point: ~1660°C
• Modulus of Elasticity: ~110 GPa
• Thermal Conductivity: ~6.7 W/m•K
• Thermal Expansion: Low

The low density combined with high strength makes Titanium Grade 5 highly efficient in weight-sensitive applications.

Corrosion Resistance

Titanium Grade 5 flanges provide excellent resistance to:

• Seawater and marine environments
• Chloride-induced corrosion
• Oxidizing environments
• Industrial chemicals and acids

Although slightly less corrosion-resistant than Grade 2, it still performs exceptionally well in most industrial environments.

Heat Treatment

Titanium Grade 5 is heat treatable, which enhances its strength and mechanical properties.

Heat Treatment Process:

• Solution Treatment: ~940–970°C
• Aging: Improves strength and hardness
• Controlled cooling

Heat treatment allows customization of properties based on application requirements.

Weldability

Titanium Grade 5 can be welded with proper precautions:

Welding Methods:

• TIG (GTAW) – Preferred for precision
• MIG (GMAW) – Used in controlled environments

Best Practices:

• Use inert gas shielding (argon)
• Maintain contamination-free environment
• Use proper filler materials
• Control heat input

Proper welding ensures strong joints without compromising performance.

Machinability

Machining Titanium Grade 5 requires careful handling due to its strength:

• Use high-quality carbide tools
• Maintain low cutting speeds
• Apply sufficient coolant
• Avoid excessive heat buildup

Proper machining techniques ensure precision and surface quality.

Standards & Specifications

Titanium Grade 5 flanges are manufactured according to international standards:

• ASTM B381 – Titanium forgings
• ASTM B348 – Titanium bars
• ASME SB381
• ANSI B16.5 – Pipe flanges
• ANSI B16.47 – Large diameter flanges

These standards ensure product quality, reliability, and global compatibility.

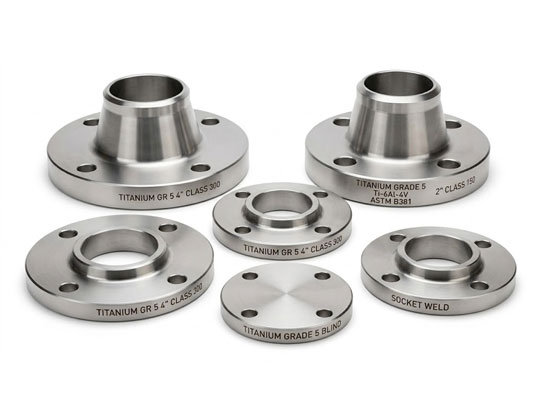

Available Types of Titanium Grade 5 Flanges

We offer a comprehensive range of flange types:

• Weld Neck Flanges: Suitable for high-pressure applications
• Slip-On Flanges: Easy installation and cost-effective
• Blind Flanges: Used to seal pipe ends
• Socket Weld Flanges: Ideal for small-diameter systems
• Threaded Flanges: Used where welding is not feasible
• Lap Joint Flanges: Allows easy dismantling
• Orifice Flanges: Used for flow measurement

Sizes & Specifications

Size Range: ½” to 48”

Pressure Ratings: 150# to 2500#

Construction: Forged for enhanced strength

Surface Finish Options:

• Pickled
• Polished
• Machined

Applications of Titanium Grade 5 Flanges

Titanium Grade 5 flanges are widely used in industries requiring high strength and reliability.

• Aerospace Industry: Used in aircraft structures, engines, and critical components due to high strength-to-weight ratio.
• Marine Industry: Suitable for offshore structures and seawater applications.
• Chemical Processing: Handles aggressive chemicals and high-temperature processes.
• Oil & Gas Industry: Used in high-pressure and corrosive environments.
• Power Generation: Applied in turbines, heat exchangers, and high-performance systems.
• Medical Industry: Used in implants and surgical equipment (special variants like ELI).

Quality Testing & Inspection

Each flange undergoes strict quality control procedures:

• Chemical composition testing
• Mechanical testing
• Dimensional inspection
• Surface defect analysis
• Positive Material Identification (PMI)

We provide Mill Test Certificates (MTC) and third-party inspection reports to ensure product reliability.

Packaging & Delivery

• Export-grade wooden packaging
• Protective wrapping to prevent damage
• Proper labeling and traceability
• Safe and timely global delivery

Why Choose Virami Steel Hub?

• Trusted Titanium Flange Manufacturer in Mumbai
• Extensive inventory and ready stock
• Competitive pricing without compromising quality
• Custom solutions tailored to client requirements
• Compliance with international standards
• Strong global export network
• Dedicated customer support

Conclusion

Titanium Grade 5 Flanges (Ti-6Al-4V) are among the most widely used titanium alloy flanges due to their exceptional strength, corrosion resistance, and lightweight properties. They are ideal for industries such as aerospace, marine, chemical processing, and oil & gas.

With a commitment to quality, innovation, and customer satisfaction, Virami Steel Hub delivers high-performance titanium flanges that ensure durability, efficiency, and long-term value across a wide range of industrial applications.
