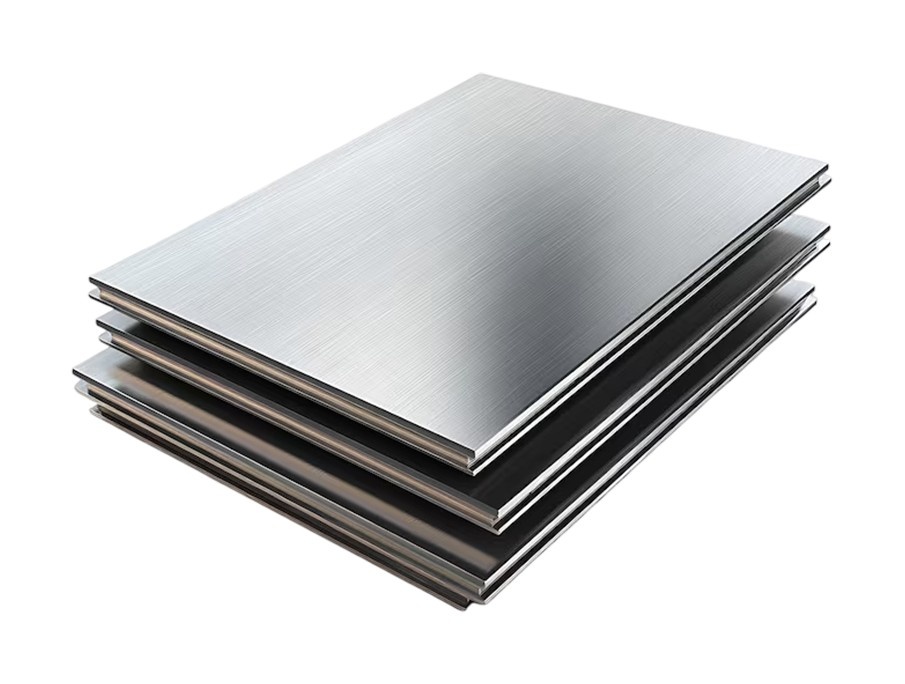

Titanium ASTM B381 Gr 7

Definition of Titanium ASTM B381 Gr 7

ASTM B381 Grade 7 is an unalloyed titanium grade that has a content of 0.12 to 0.25% palladium. This enhances corrosion resistance and its mechanical properties. The grade is UNS R52400 and characterized by its minimum tensile strength being at 50 ksi (345 MPa) and yield strength at 40 ksi (275 MPa). The product finds applications where there is an environment that is severe, including chemicals as well as some applications in marine environments. Whereas Grade 7H has better guaranteed minimum tensile strength at 58 ksi (400 MPa), ASTM B381 Grade 7 is crucial to demanding applications in engineering that require durability and reliability.

Machinability of Titanium ASTM B381 Gr 7

Titanium ASTM B381 Grade 7 has a machinability close to that of the commercially pure titanium grades but is less easy due to superior corrosion resistance and the presence of palladium in the range between 0.12 – 0.25%. Extra care is required during machining to avoid overheating, tool wear and deformation of material.

• Thermal Conductivity: The titanium alloy Grade 7 has low thermal conductivity, which increases heat accumulation in the cutting tool, thus causing rapid wear in tools and sometimes damaging them. Make use of a superior cooling system and good cutting fluids to dissipate heat.
• Tool Wear:The considerable wear on cutting tools is the result of material toughness and strength. Solution Use carbide, ceramics, or coated high-speed steel tools for best life.
• Cutting Speed and Feed: Low speed of cutting and feed rate must always avoid overheating.
• Cutting Speed:100–200 ft/min at 30–60 m/min.
• Feed Rate:Moderate, ensuring controlled material removal without tool overload.
• Chip Management:Titanium is very machinable but produces long, uniform chips that can be problematic. Using chip-breaking inserts or high-pressure coolant systems should be employed in managing chip evacuation.
• Work Hardening:Titanium Grade 7 hardens quickly during machining, increasing cutting difficulty. Always strive to maintain a steady and unbroken cutting action, utilizing sharp tooling and avoiding tool engagement.
• Coolants:An adequate cooling is vital in preventing thermal damage and ensuring surface integrity.
• Recommended Coolants:Water-miscible coolants with good lubricity and heat transfer

Conclusion Titanium ASTM B381 Gr 7

Titanium ASTM B381 Grade 7 is one of the advanced titanium-based alloys that provide excellent corrosion resistance, especially in aggressive environments which include acidic chloride-rich situations. The further incorporation of 0.12%–0.25% of palladium provides it with resistance to crevice corrosion, pitting, and even stress corrosion cracking; therefore it achieves the high preference usage in chemical processing, in marine and energy.

Although Grade 7 is moderately machinable, the alloy still offers high versatility and balance strength with weight compatibility. It exhibits a similar mechanical property profile of Grade 2 titanium but superior corrosion resistivity added to it, which is excellent for critical applications in harsh environments.

Titanium ASTM B381 Grade 5 (6AL-4V) is arguably the most reliable and widely used of titanium alloys, to the point that it is the only alloy trusted to operate in strongly demanding environments where strength, toughness, and resistance to corrosion come into play. Its contribution towards technological innovation in this diverse set only underlines its continued relevance for material engineering worlds.
